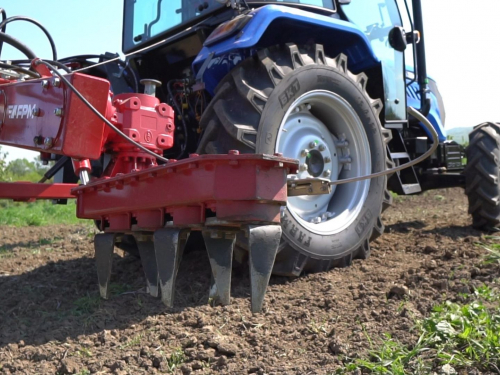

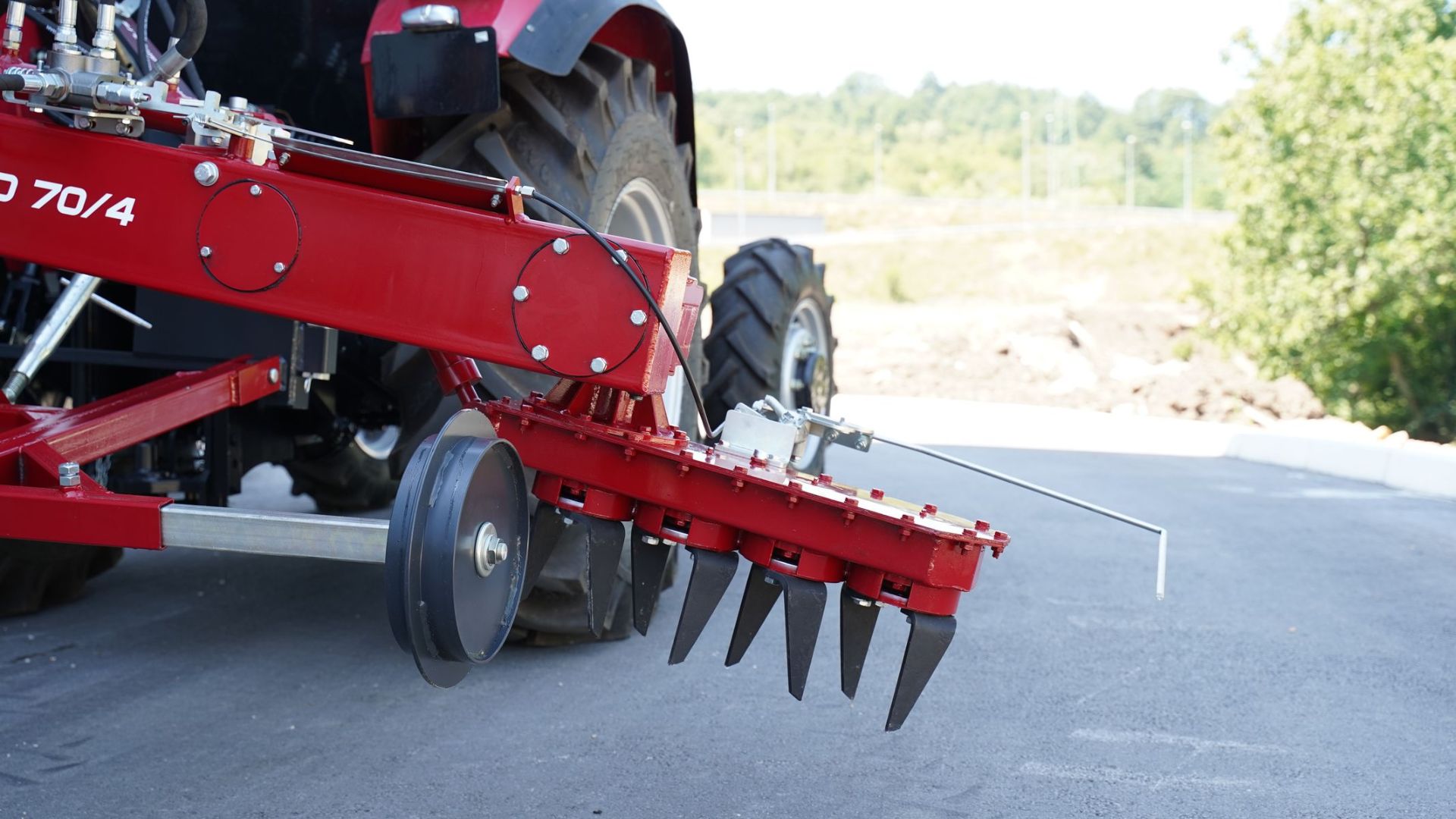

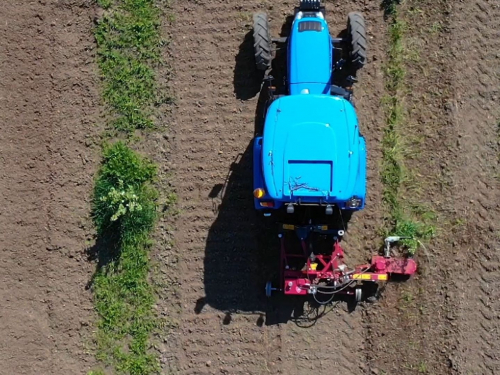

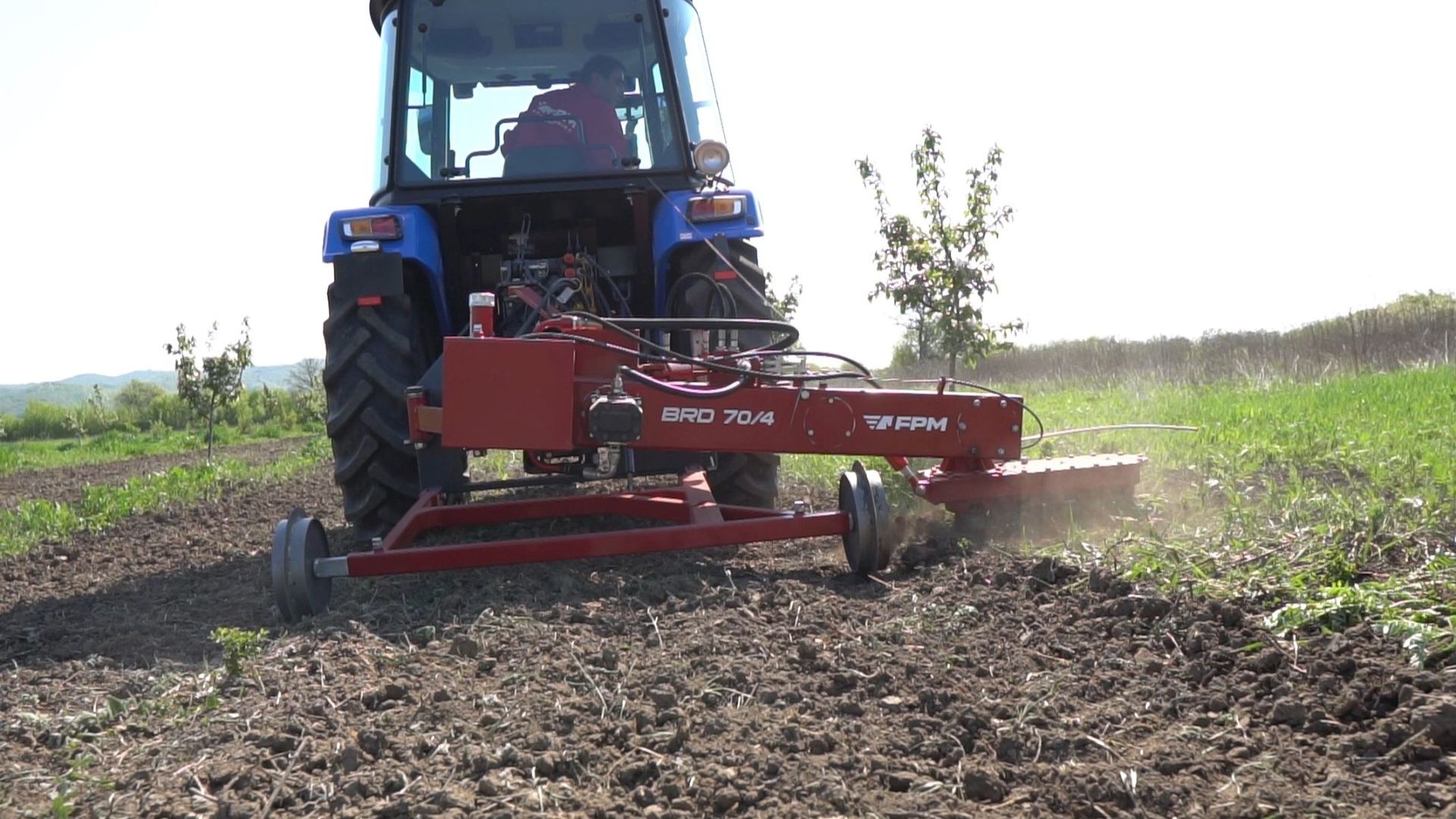

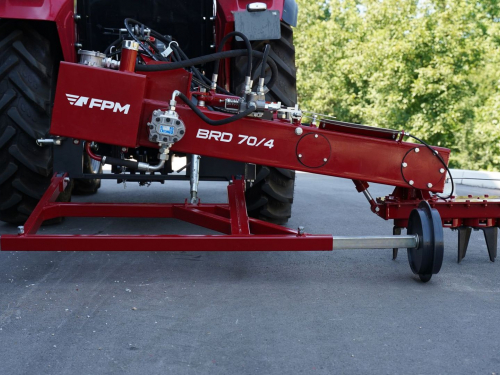

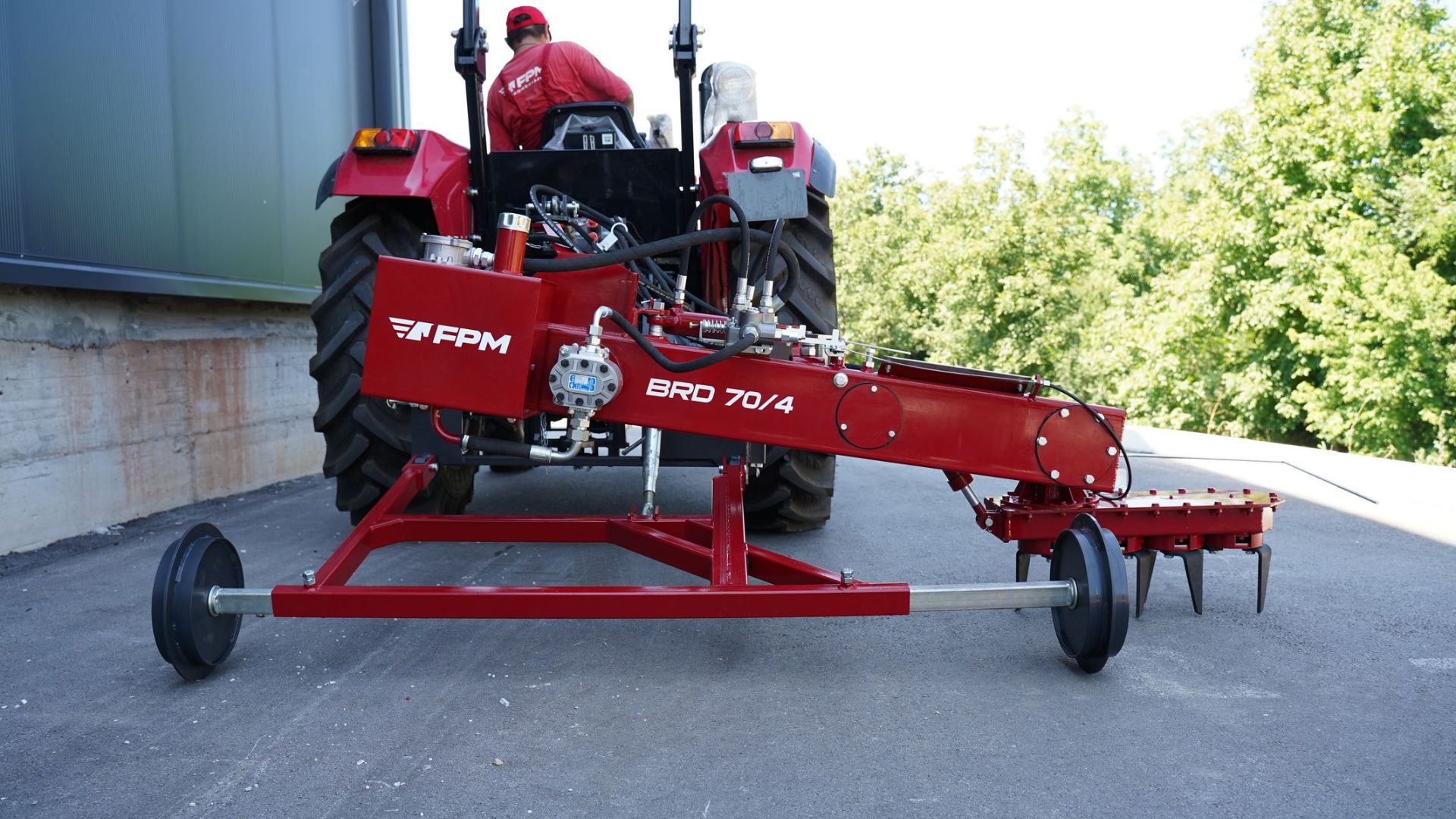

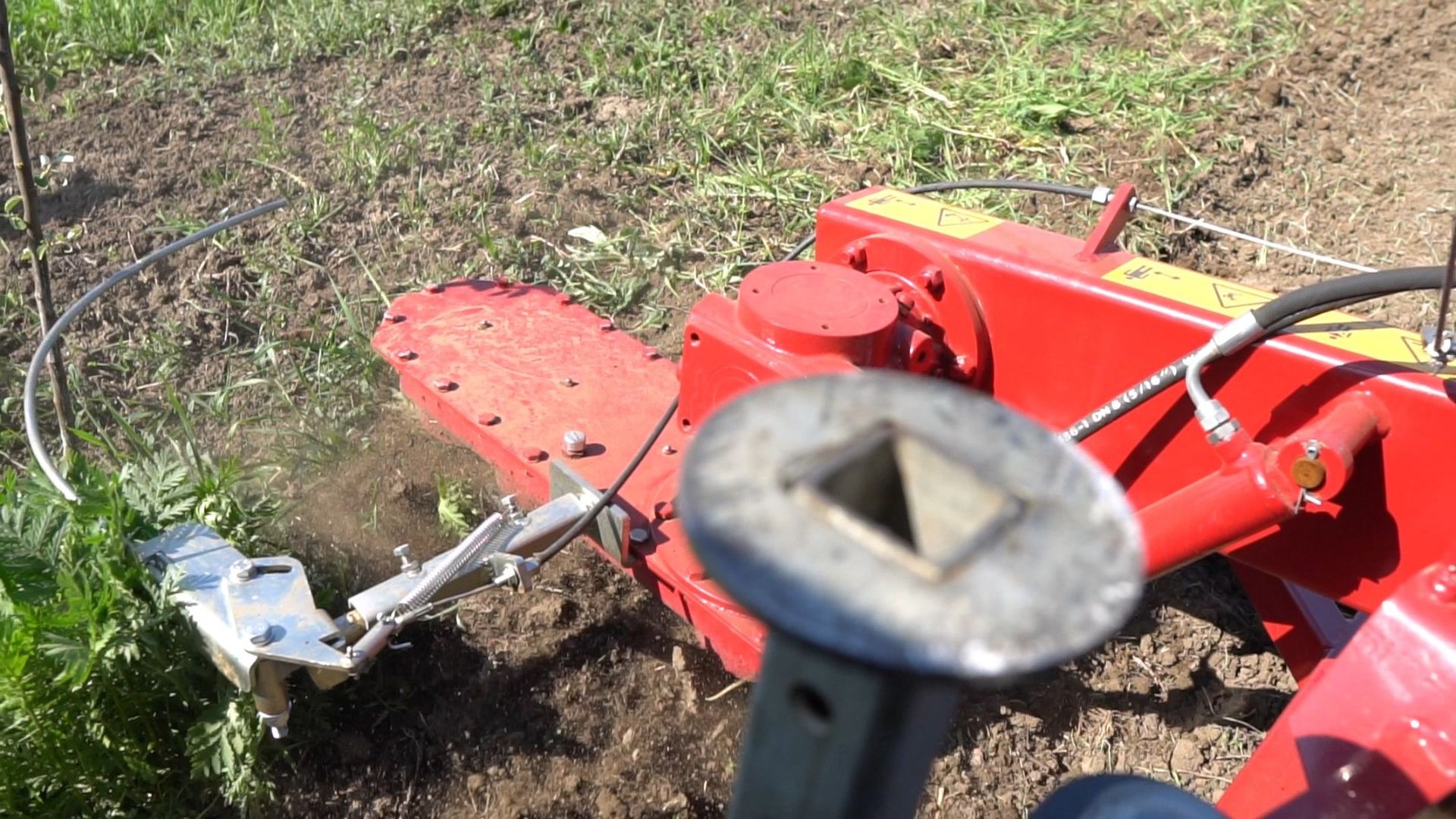

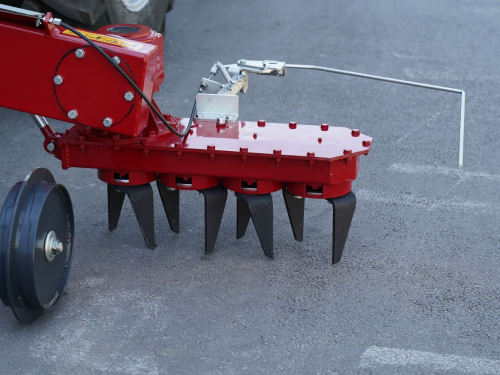

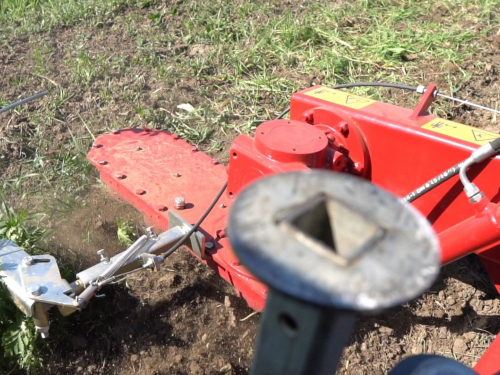

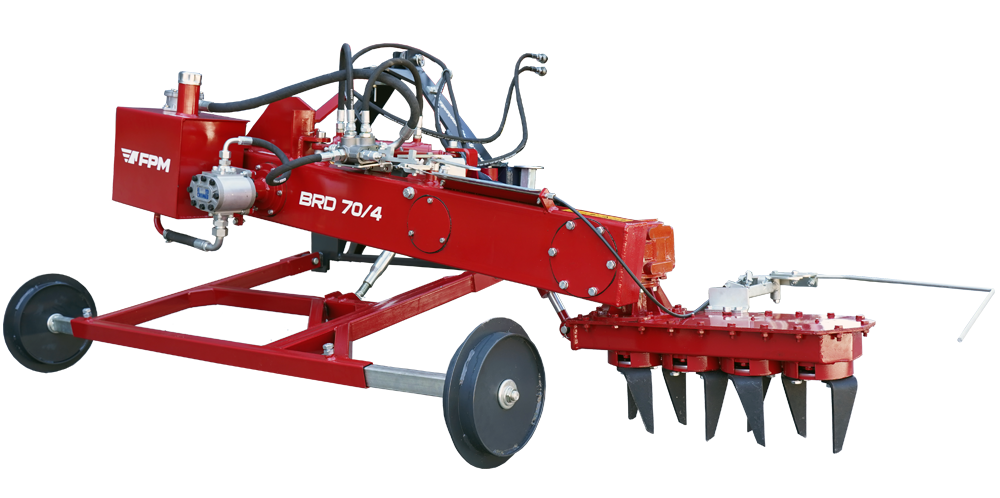

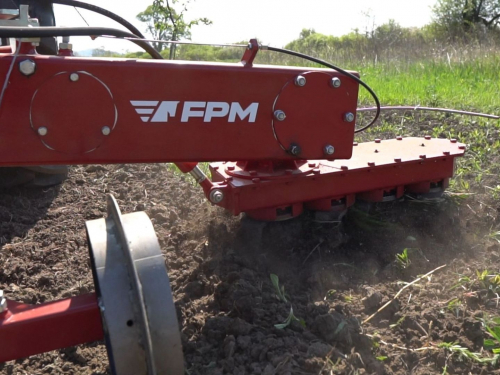

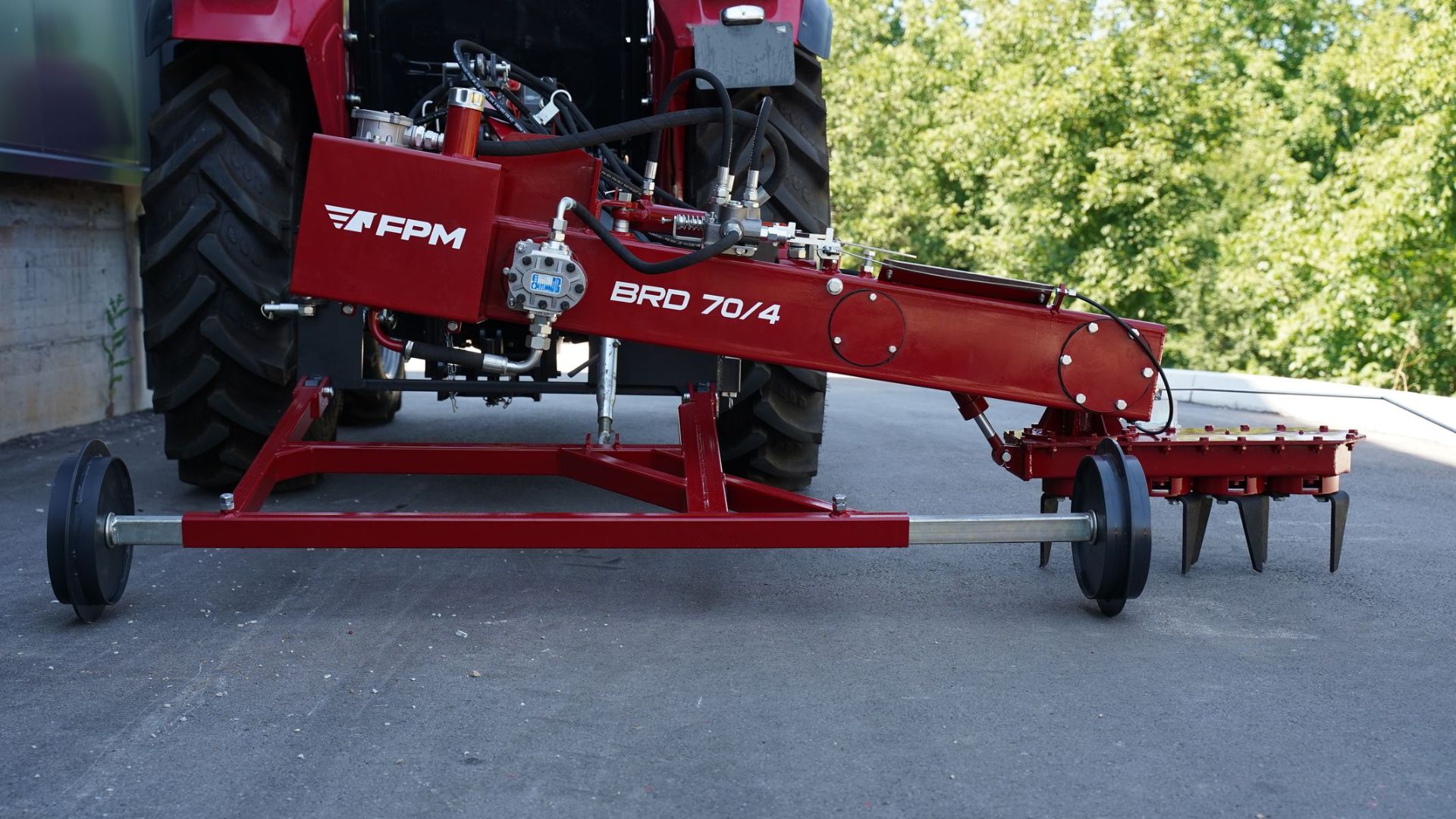

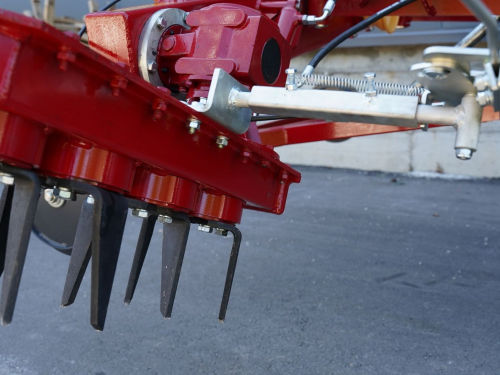

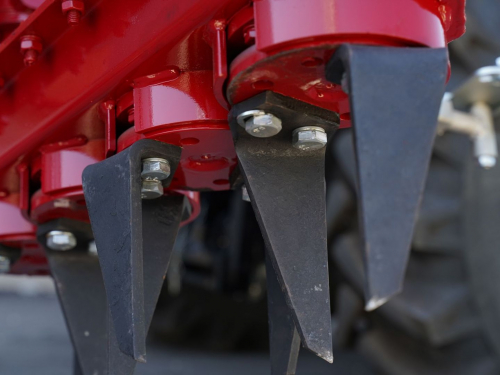

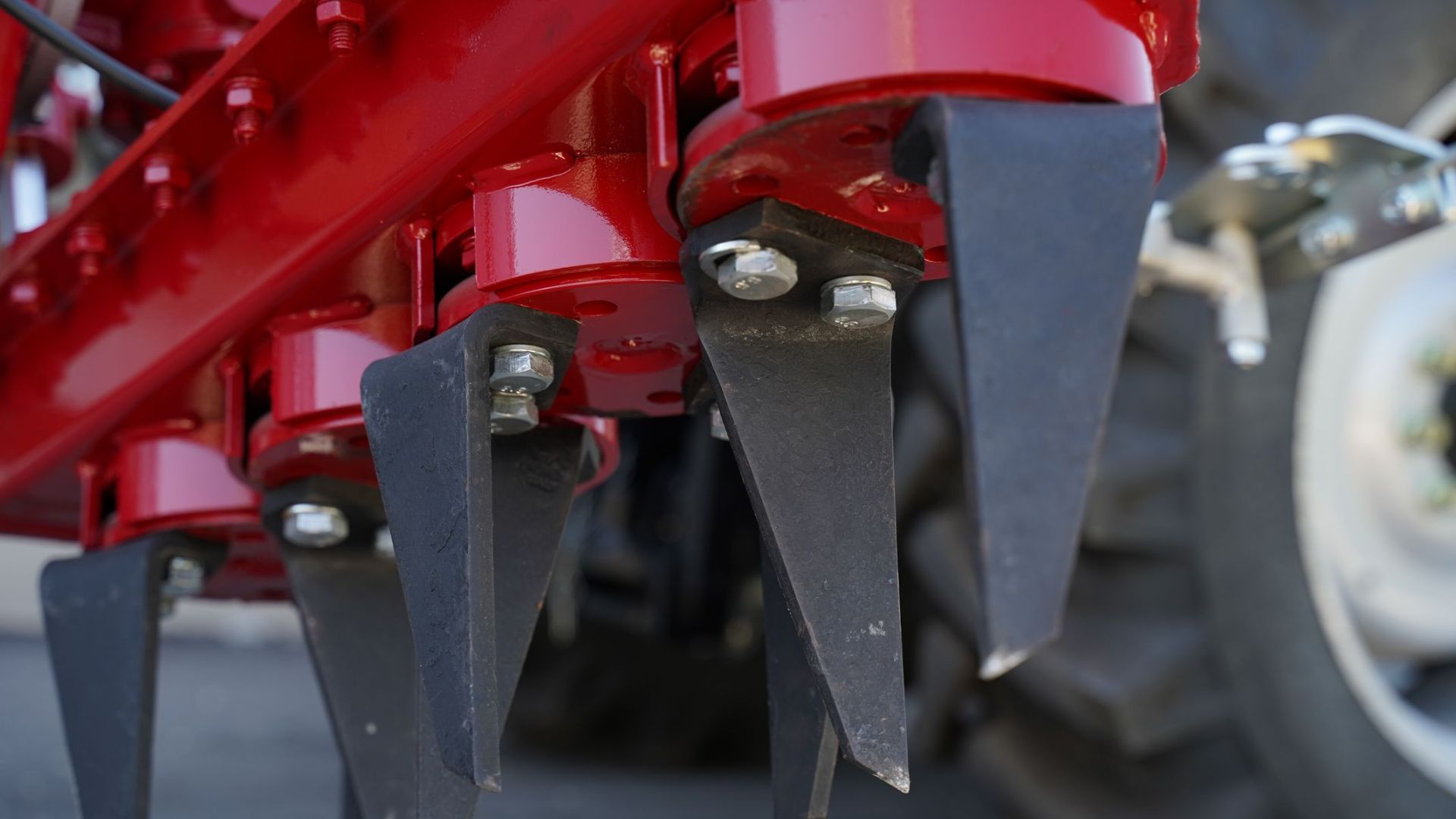

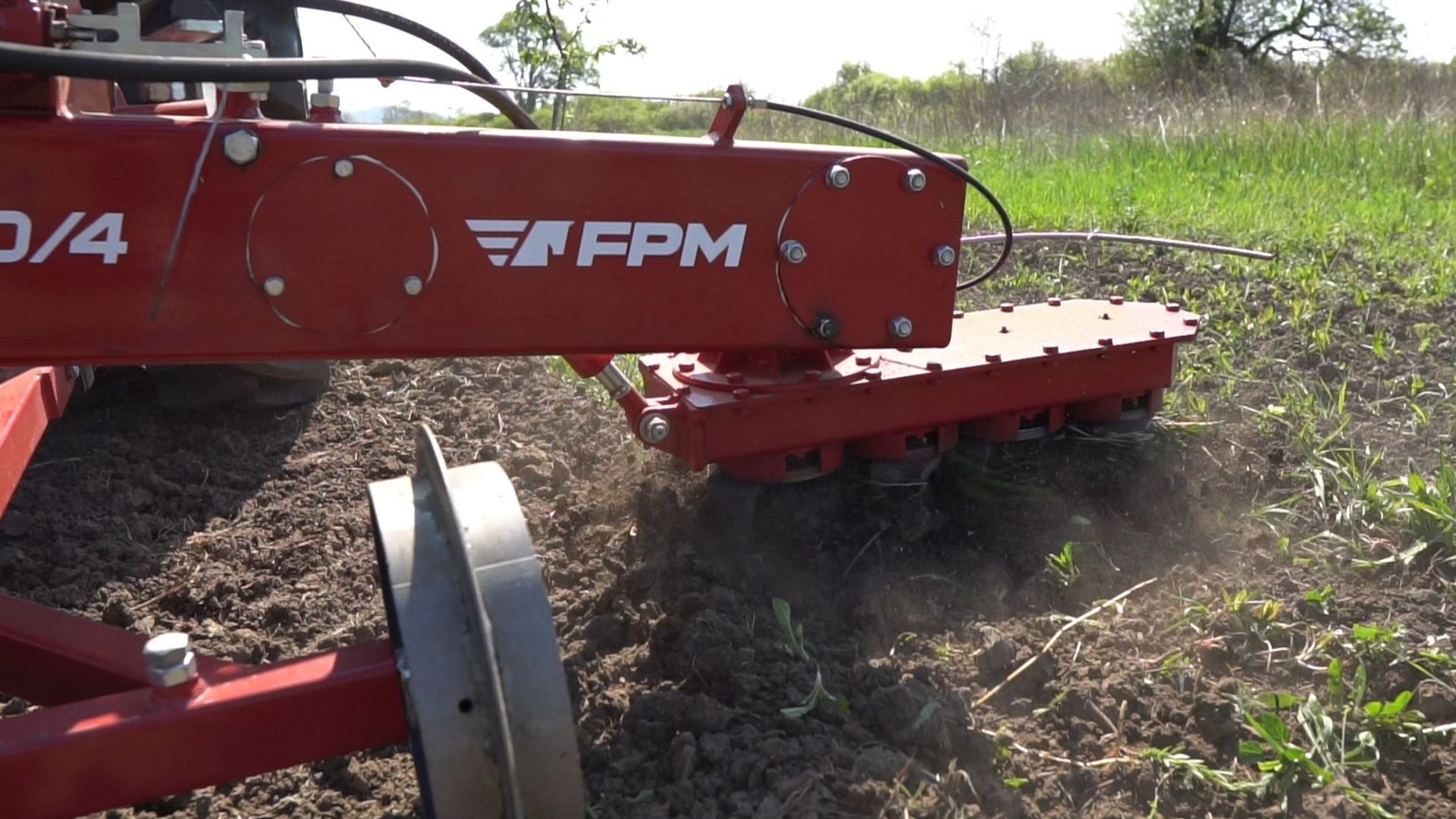

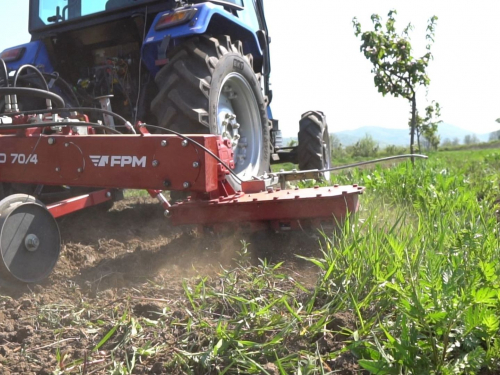

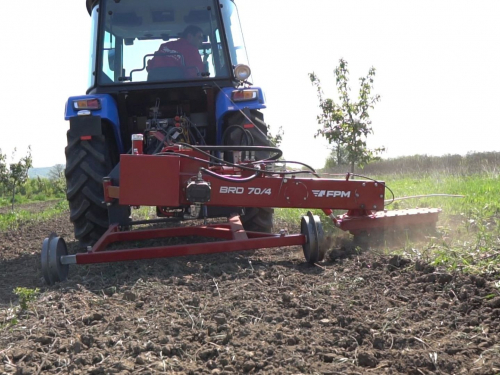

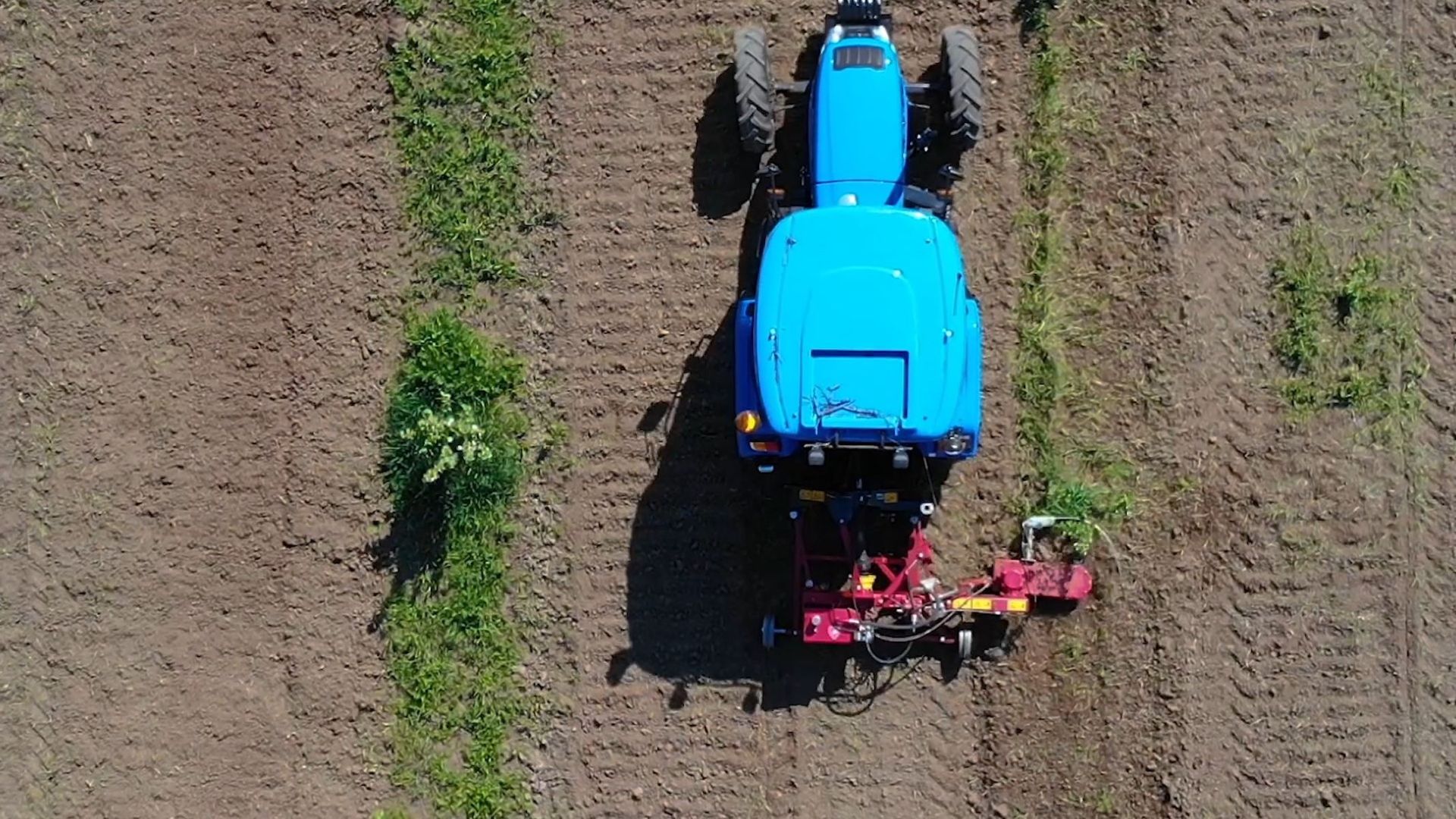

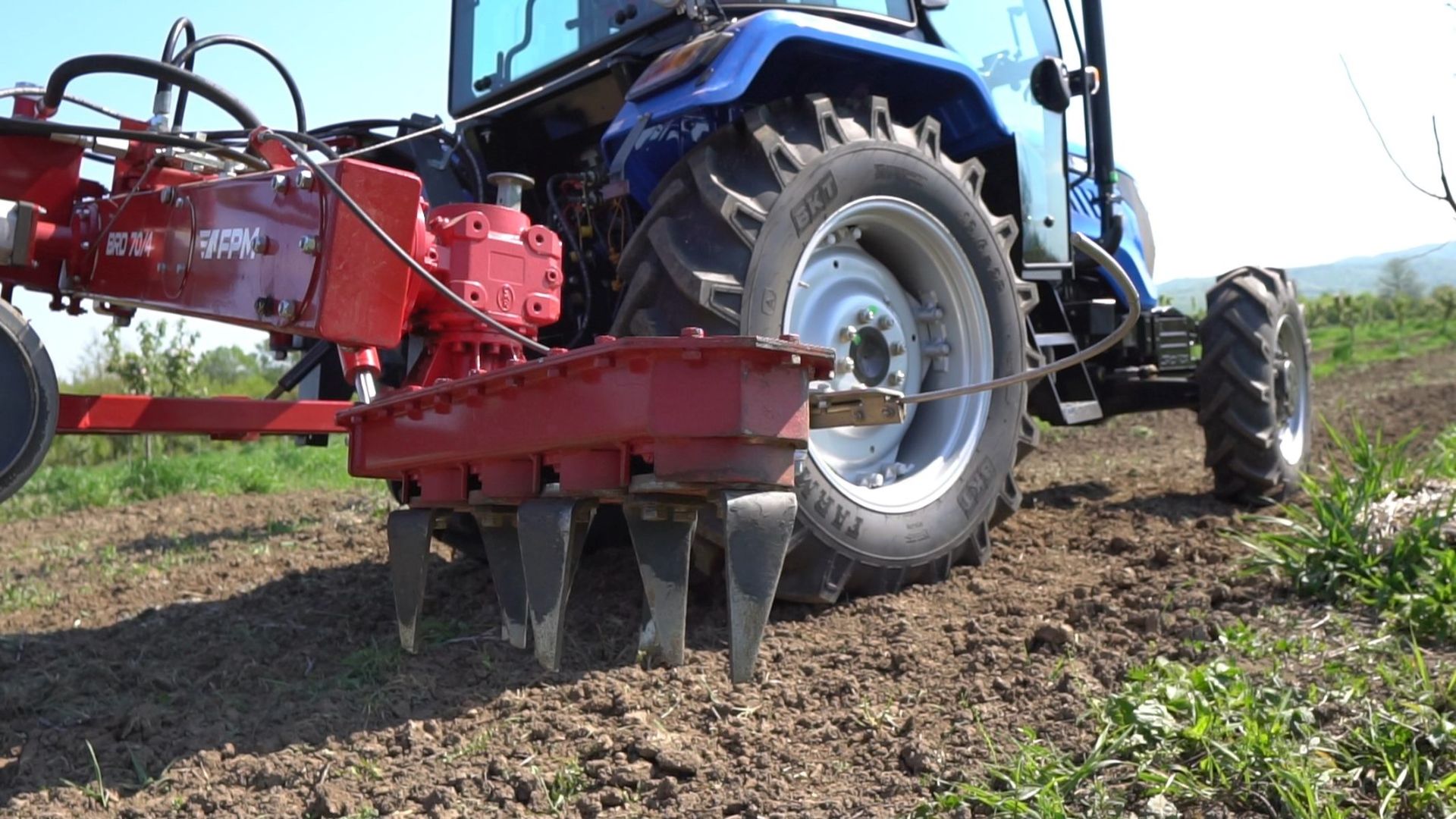

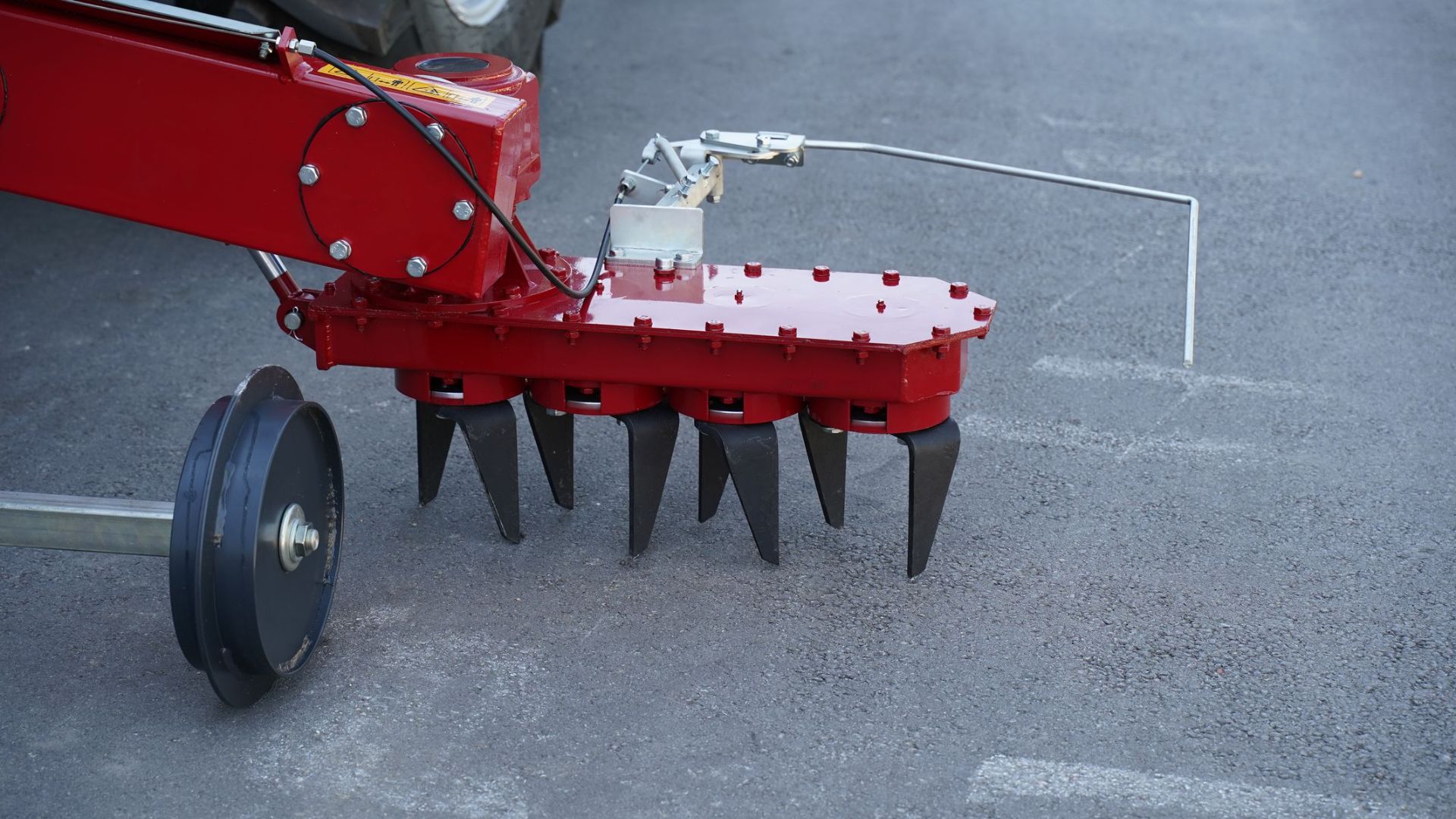

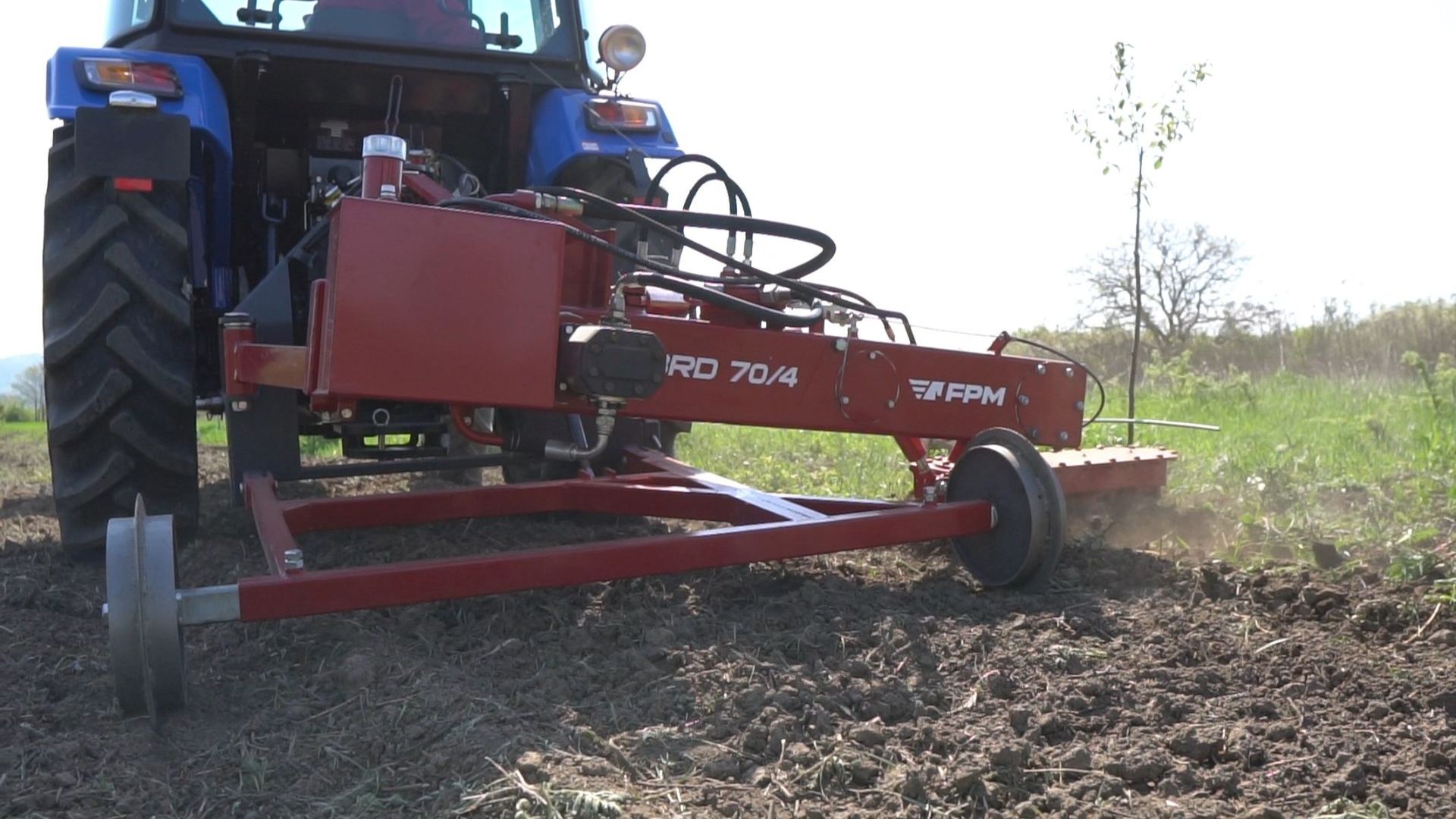

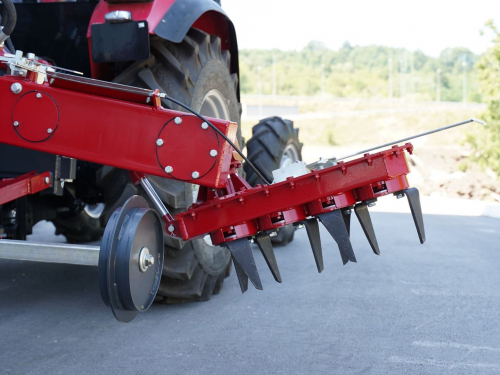

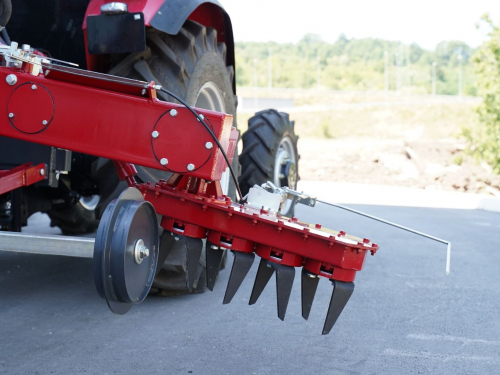

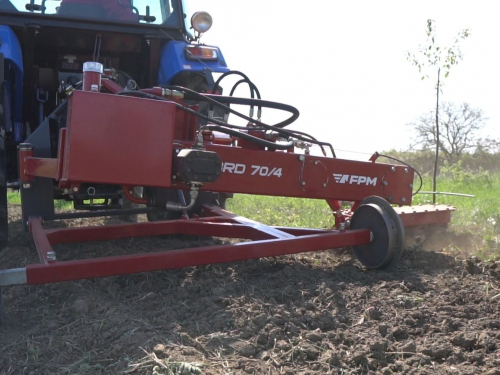

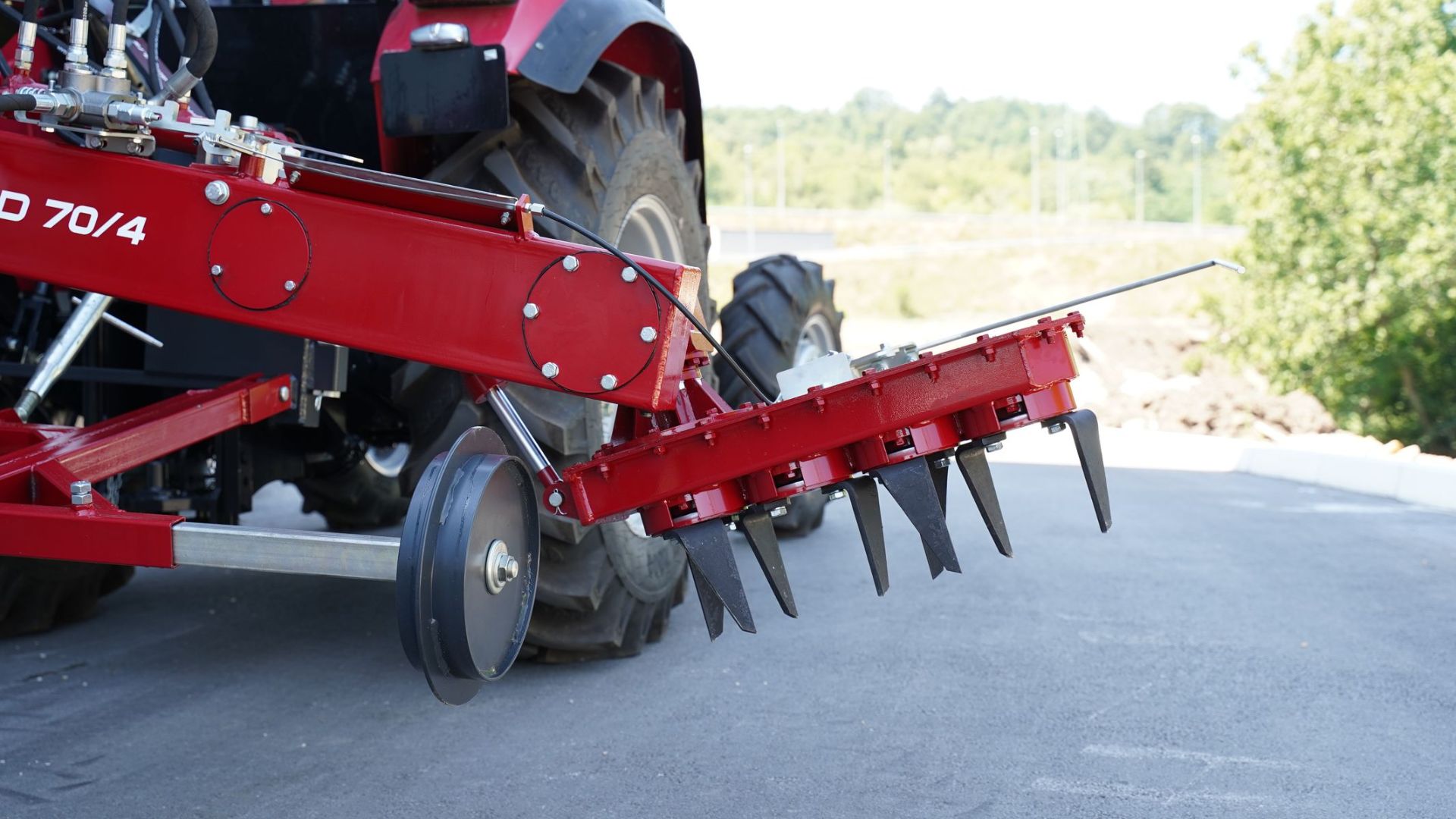

BRD in-line power harrows are intended for work in orchards, primarily for cultivation between trees with a minimum distance of 50 cm. It can work in difficult conditions and hilly terrain thanks to the tilting of the working head. BRD removes grass from the ground and does not form a hard layer under the treated surface. The working part of the machine is a rotary harrow with 4 rotors, while there are two hoes on each of them. The working width of the BRD is 70 cm, and the displacement to the side is about 50 cm. The maximum depth of tillage is up to 15 cm.
- Advantages:

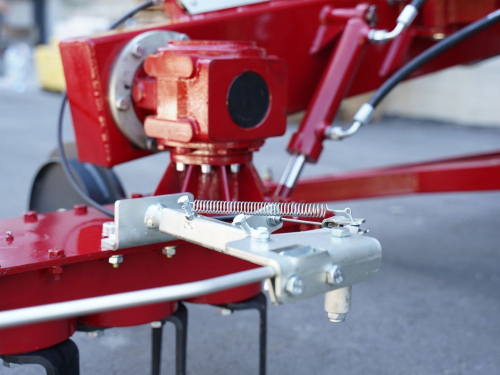

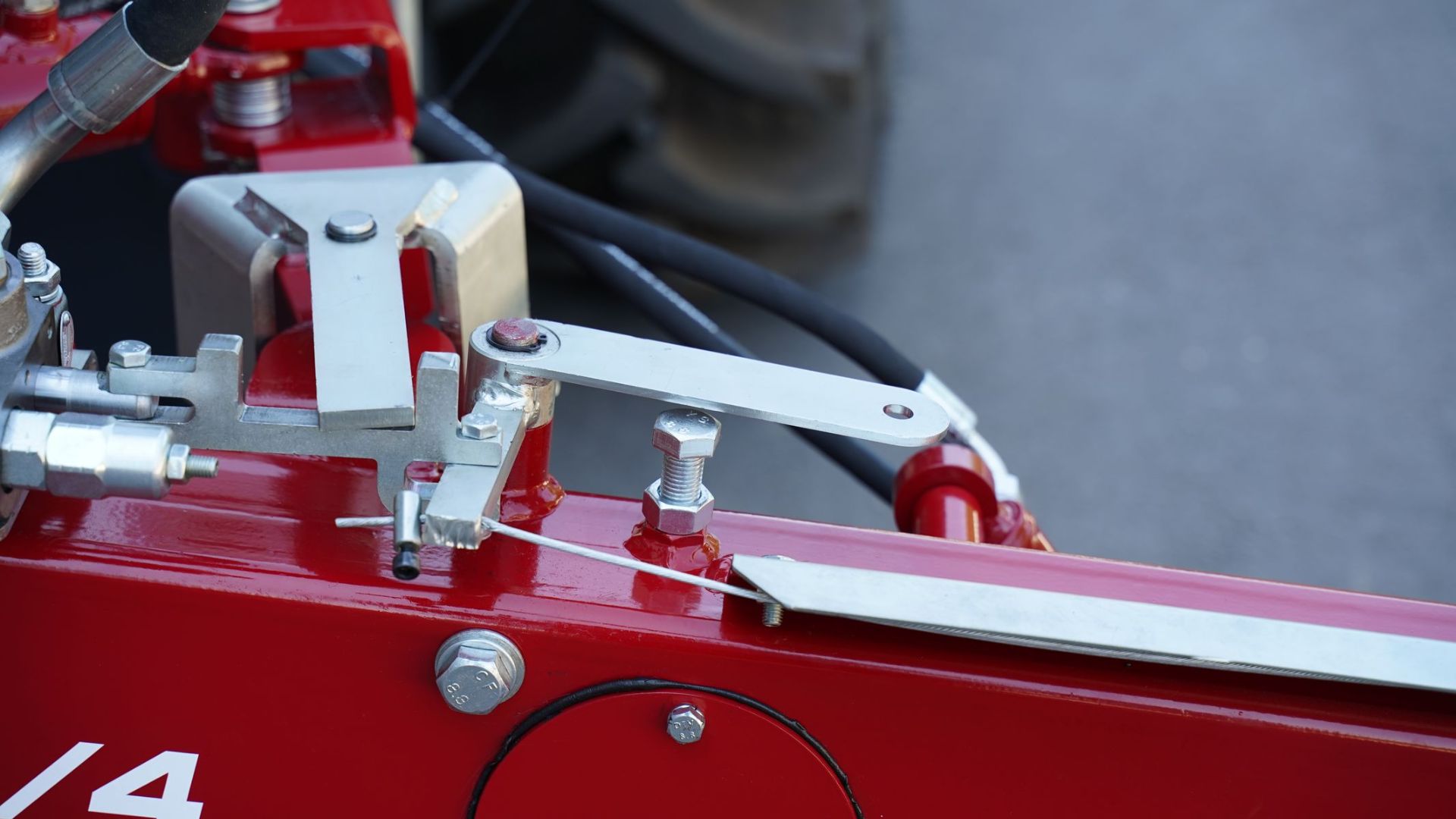

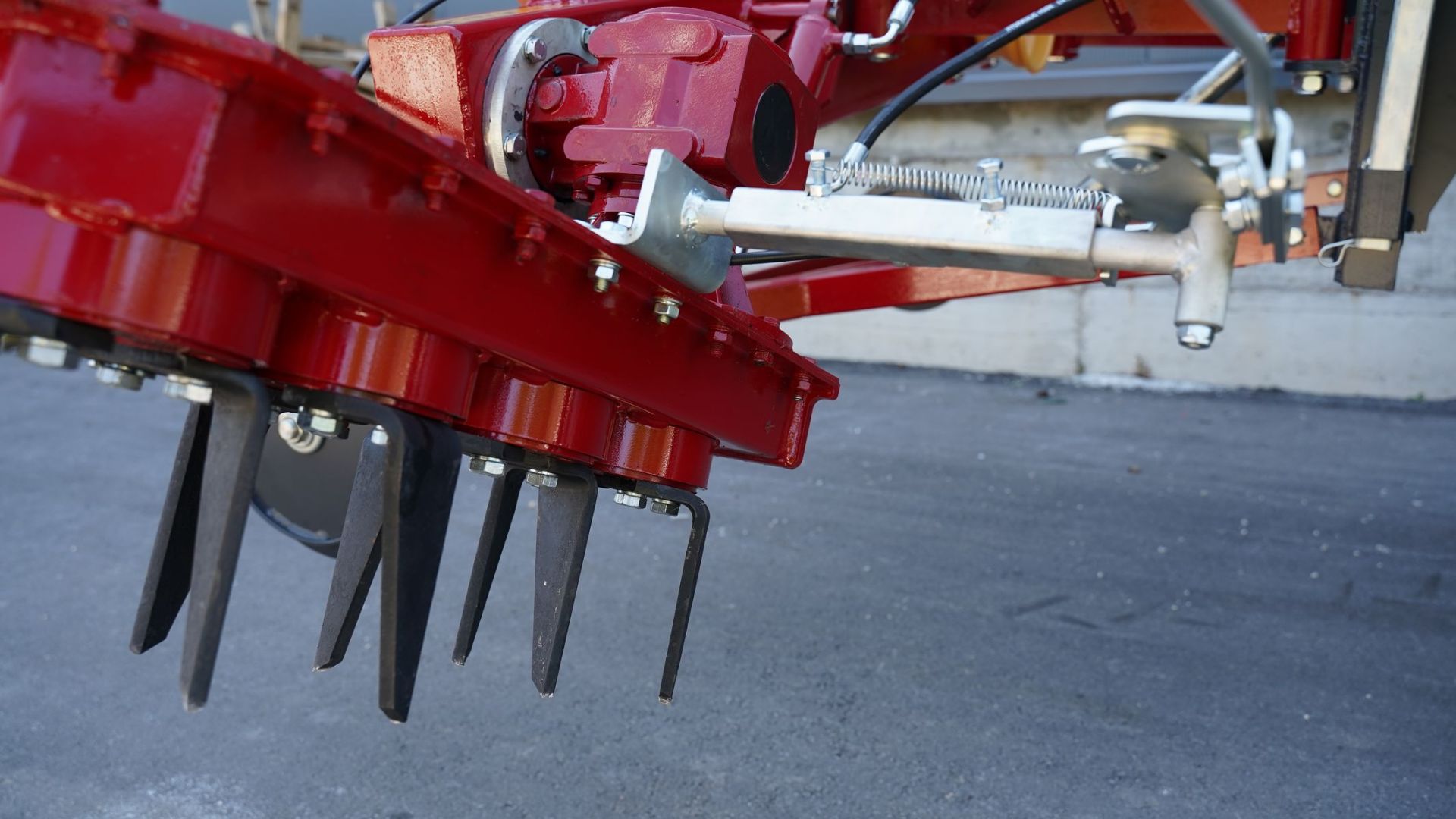

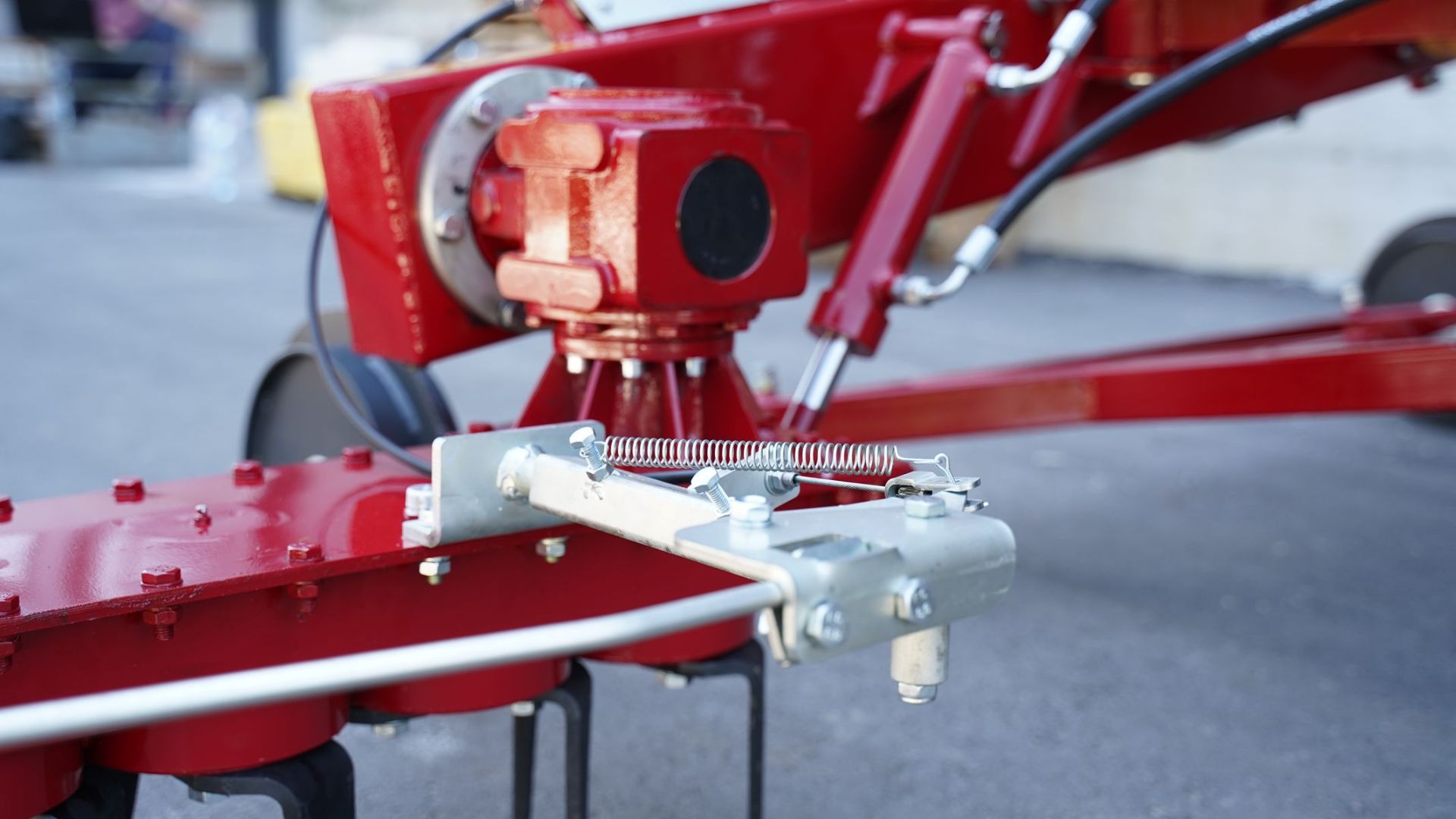

- Lateral movement with adjustable sensor rod and hydraulic system
- High quality hoes
- Main characteristics:

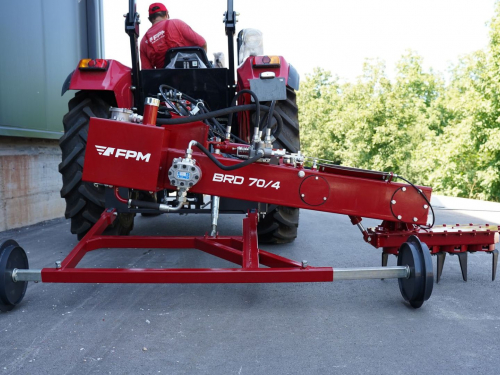

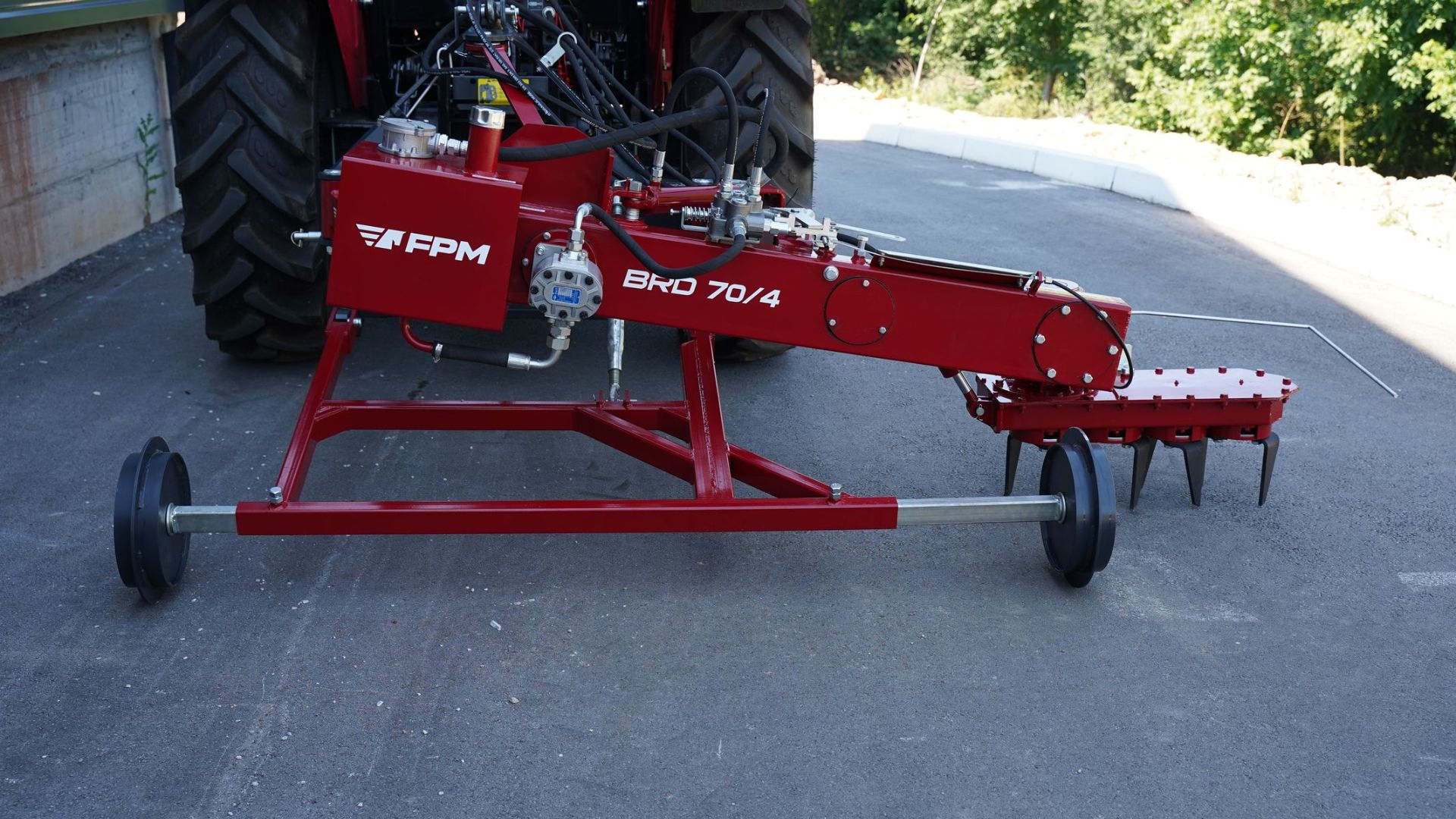

- The working depth is adjustable with a 2-wheel frame

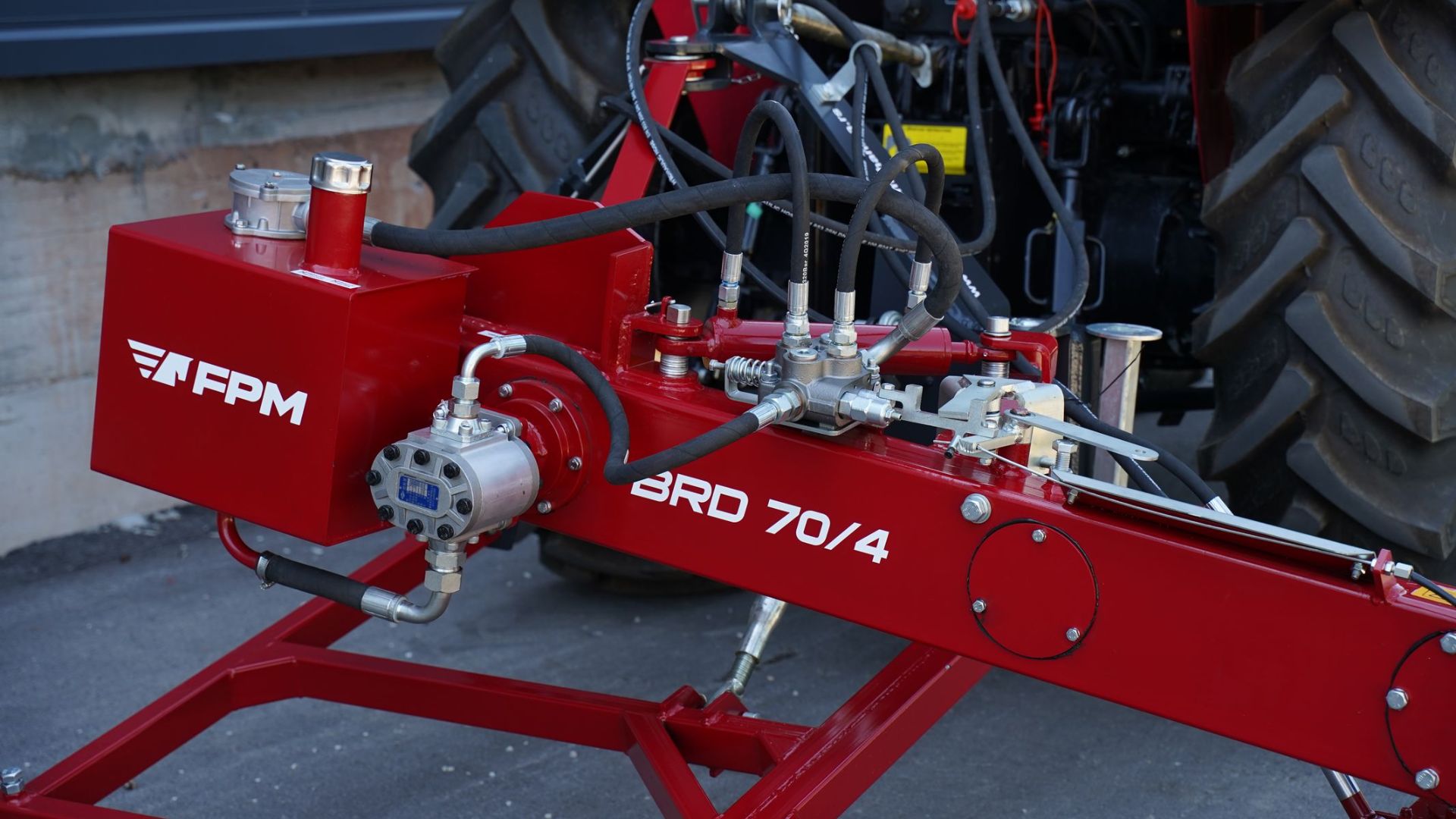

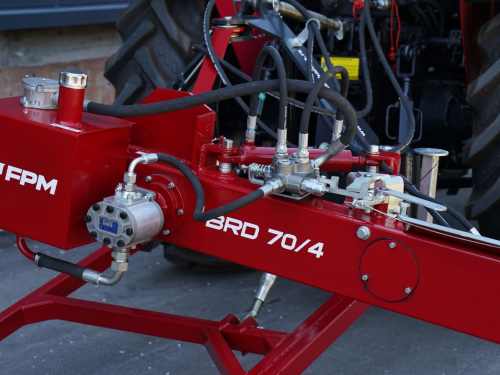

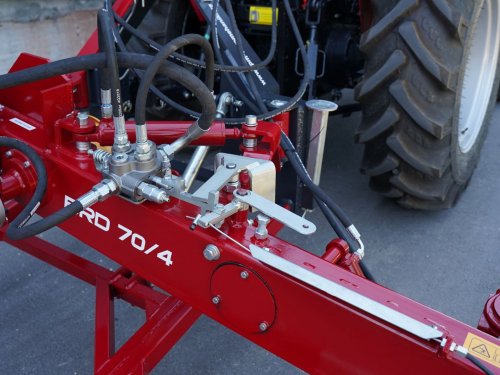

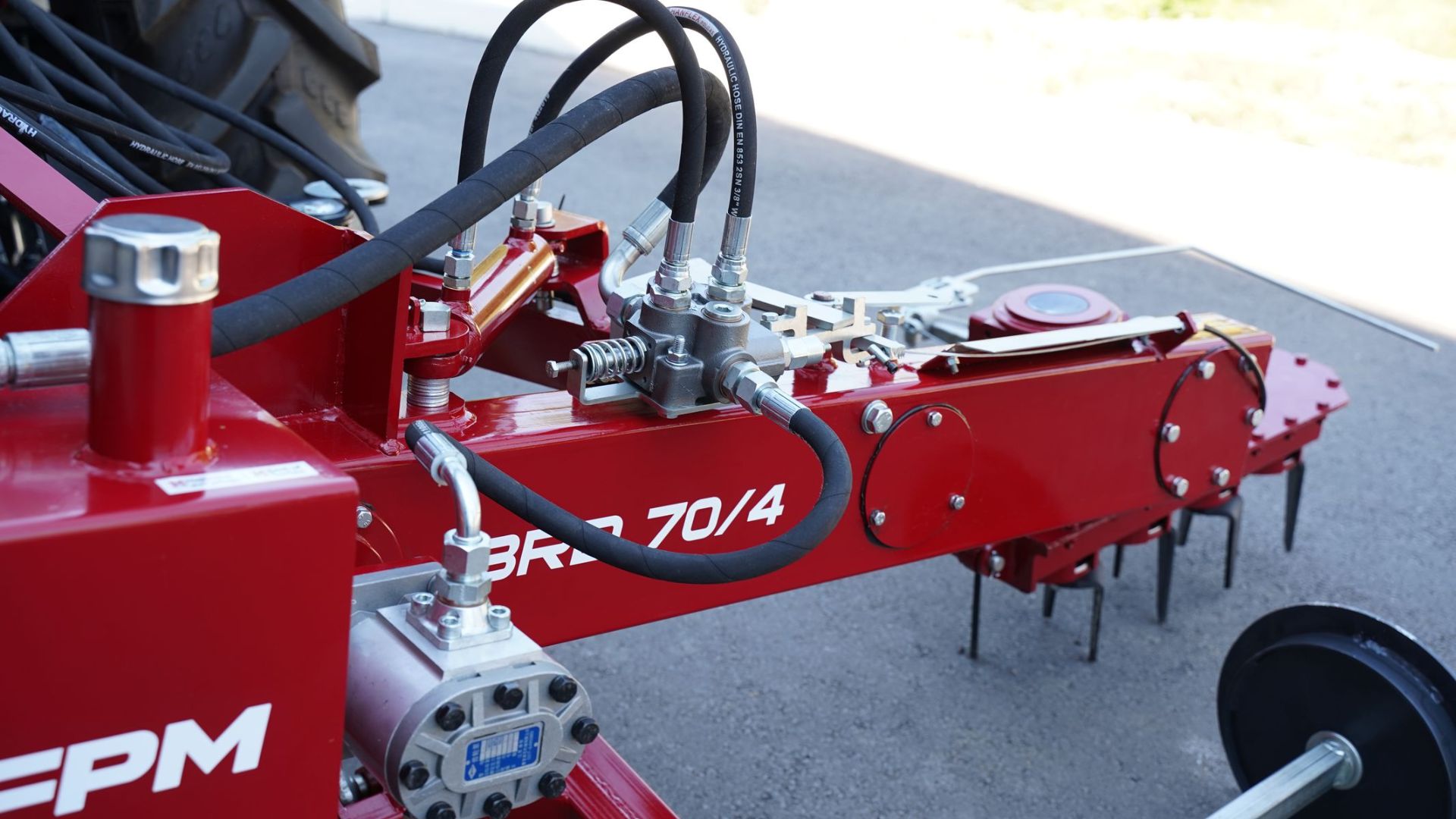

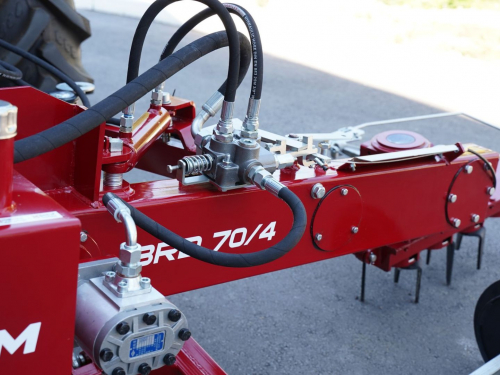

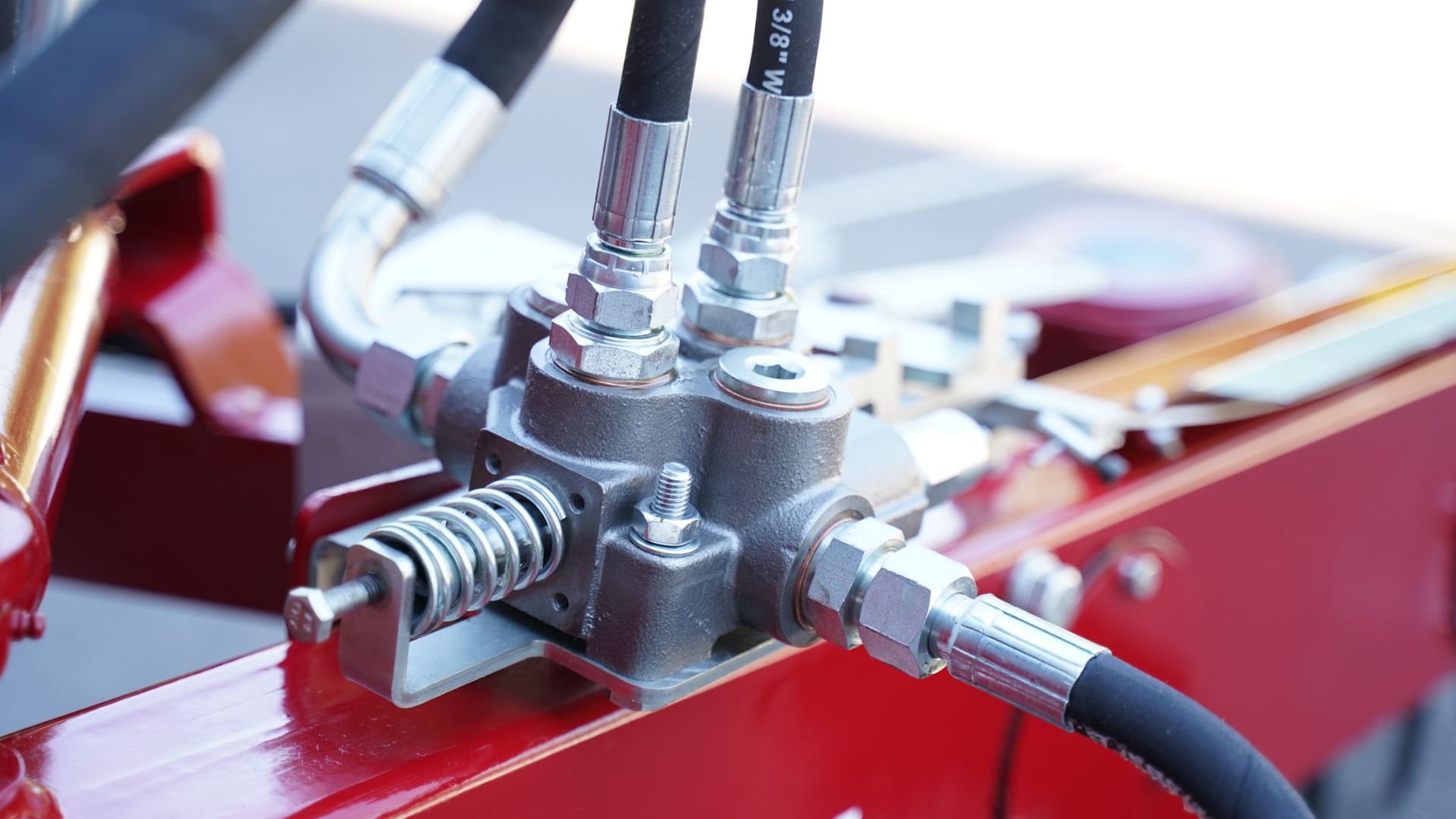

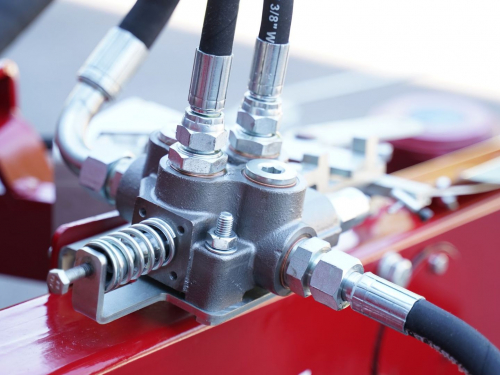

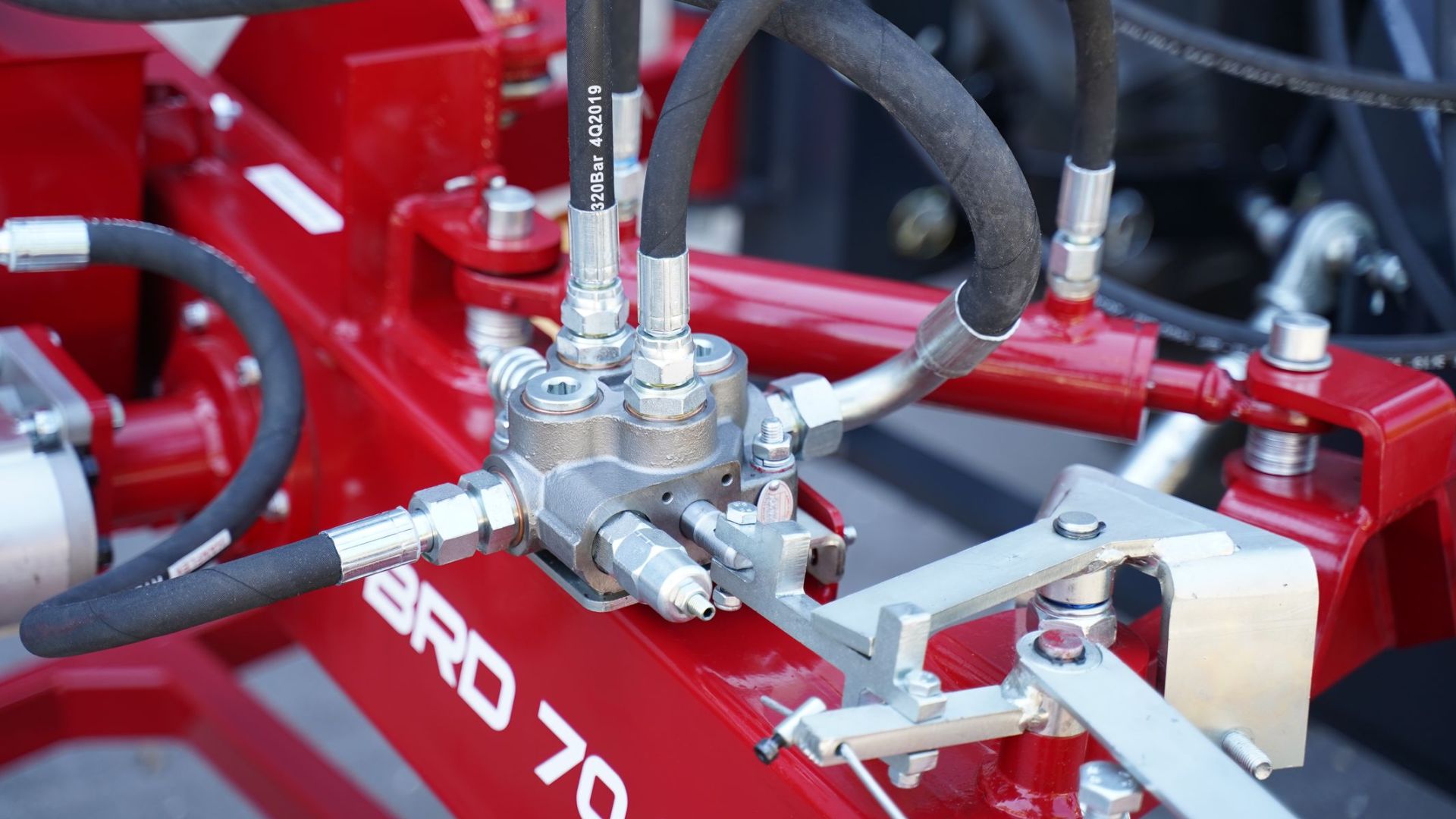

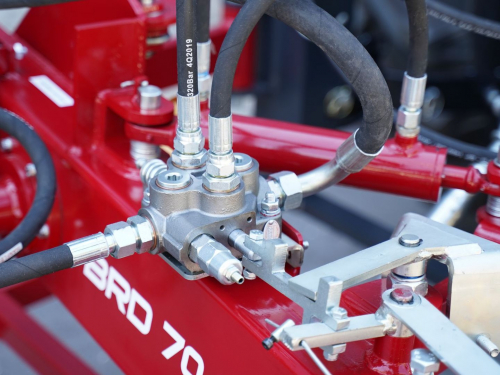

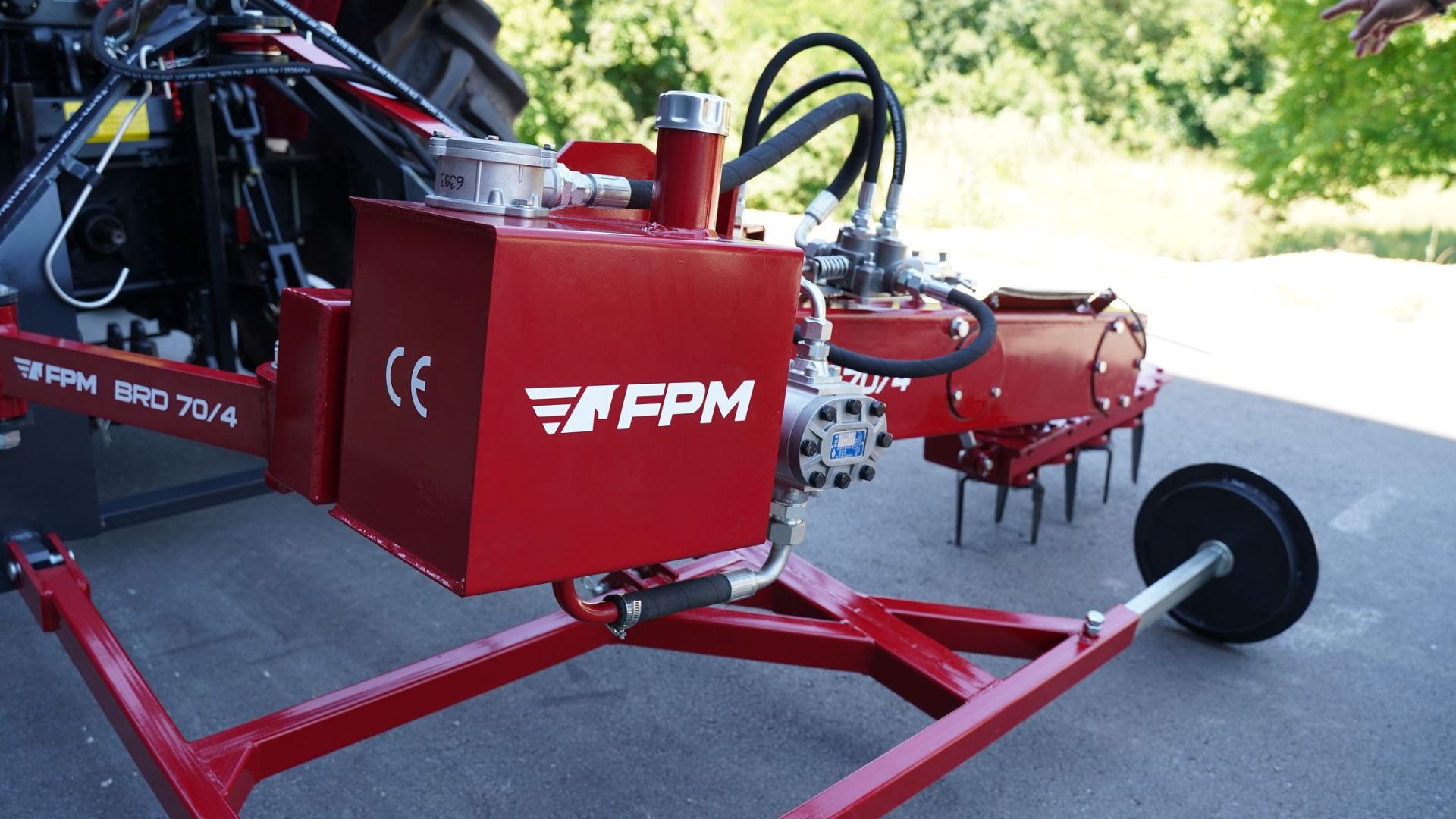

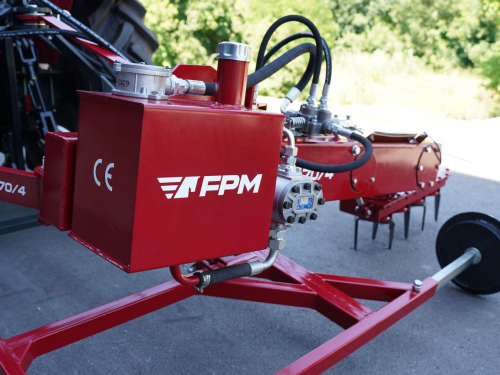

- Movement of the machine in a side is realized by hydraulics system consisting of tank with filter, pump, distributor and cylinder
- Vertical working bodies enable better tillage
- Advantages:

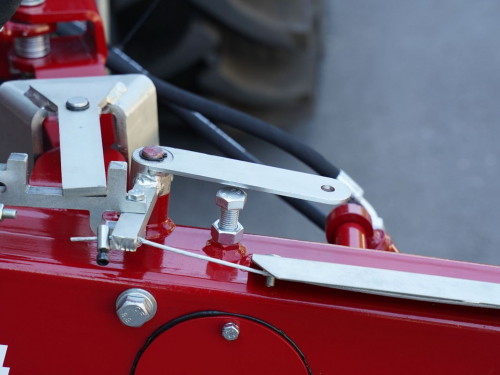

- Lateral movement with adjustable sensor rod and hydraulic system
- High quality hoes
- Main characteristics:

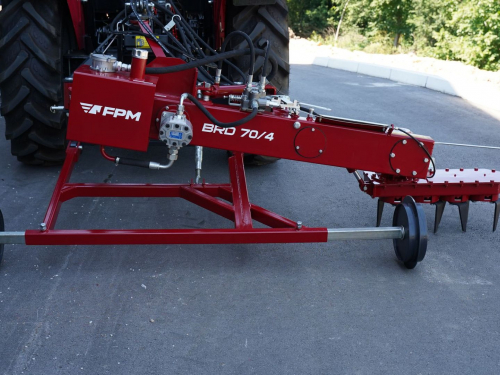

- The working depth is adjustable with a 2-wheel frame

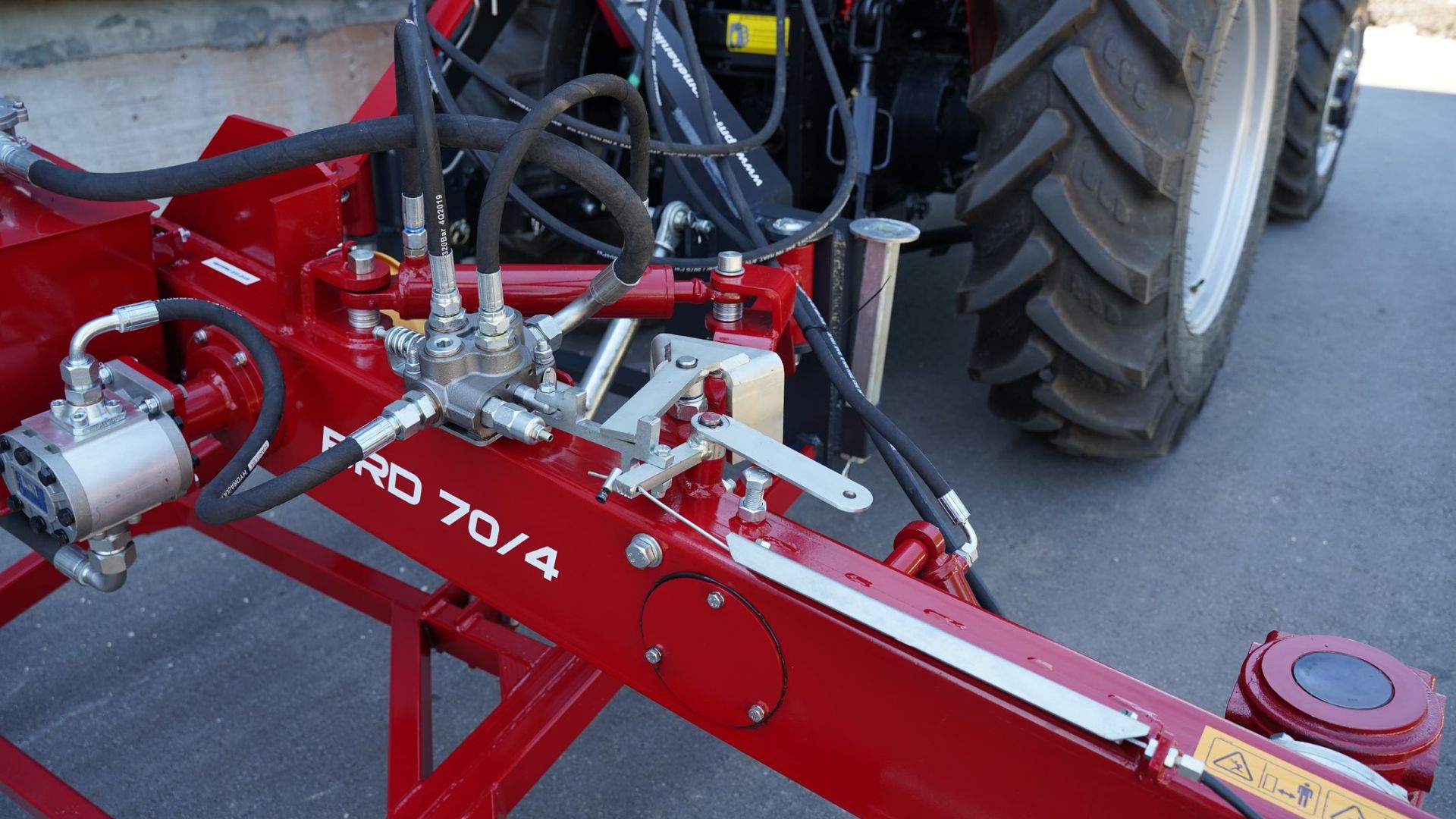

- Movement of the machine in a side is realized by hydraulics system consisting of tank with filter, pump, distributor and cylinder
- Vertical working bodies enable better tillage
| Type | BRD 70/4 |
| Working width | 65cm |
| Movement in a side | 50cm |
| Rotor no. | 4 |
| No. of blades | 8 |
| Min tractor HP | 30 - 50HP |
| Rotor RPM | 350 r/m |
| PTO shaft RPM | 540 r/m |
| Tractor category | I |
| Hydraulic system pressure | up to 180 bar |
| Pump is directly connected to PTO shaft | YES |
| Oil reservoir | 20L |
| Weight (kg) | 410kg |
