Double cutter bar mower

Double cutter bar mower

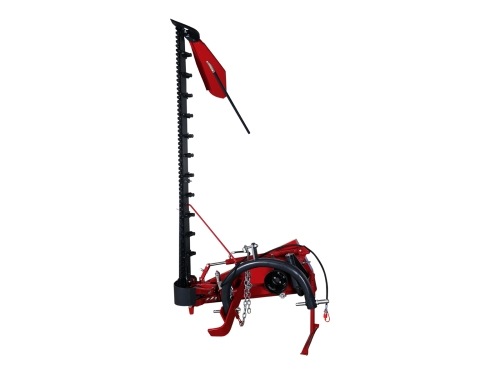

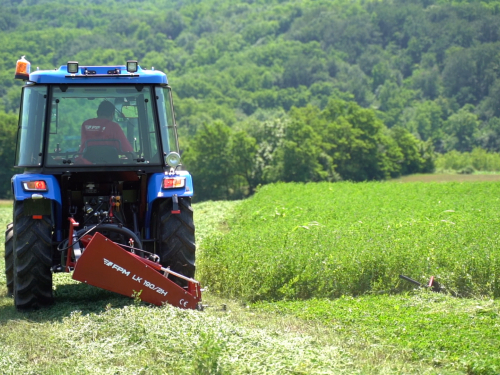

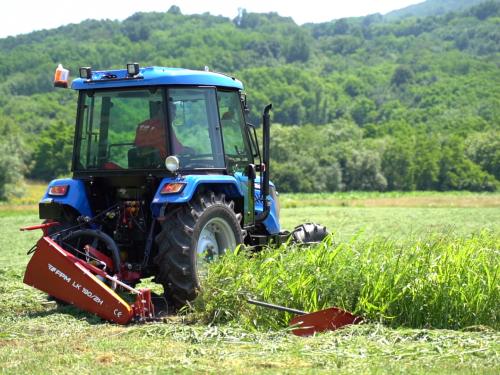

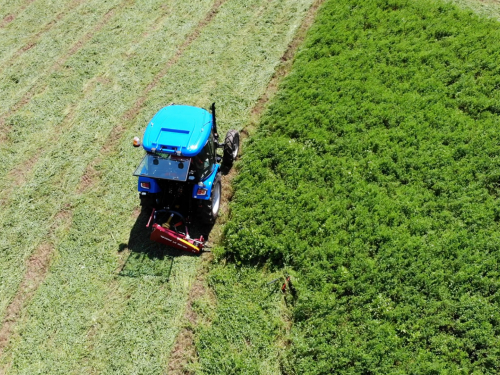

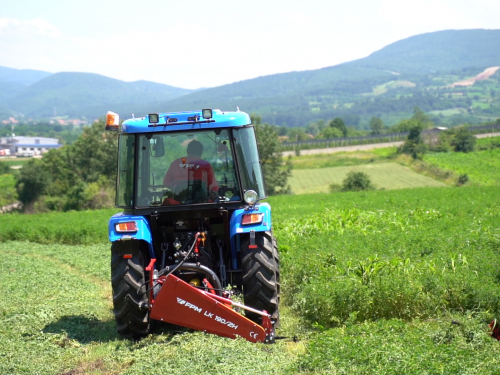

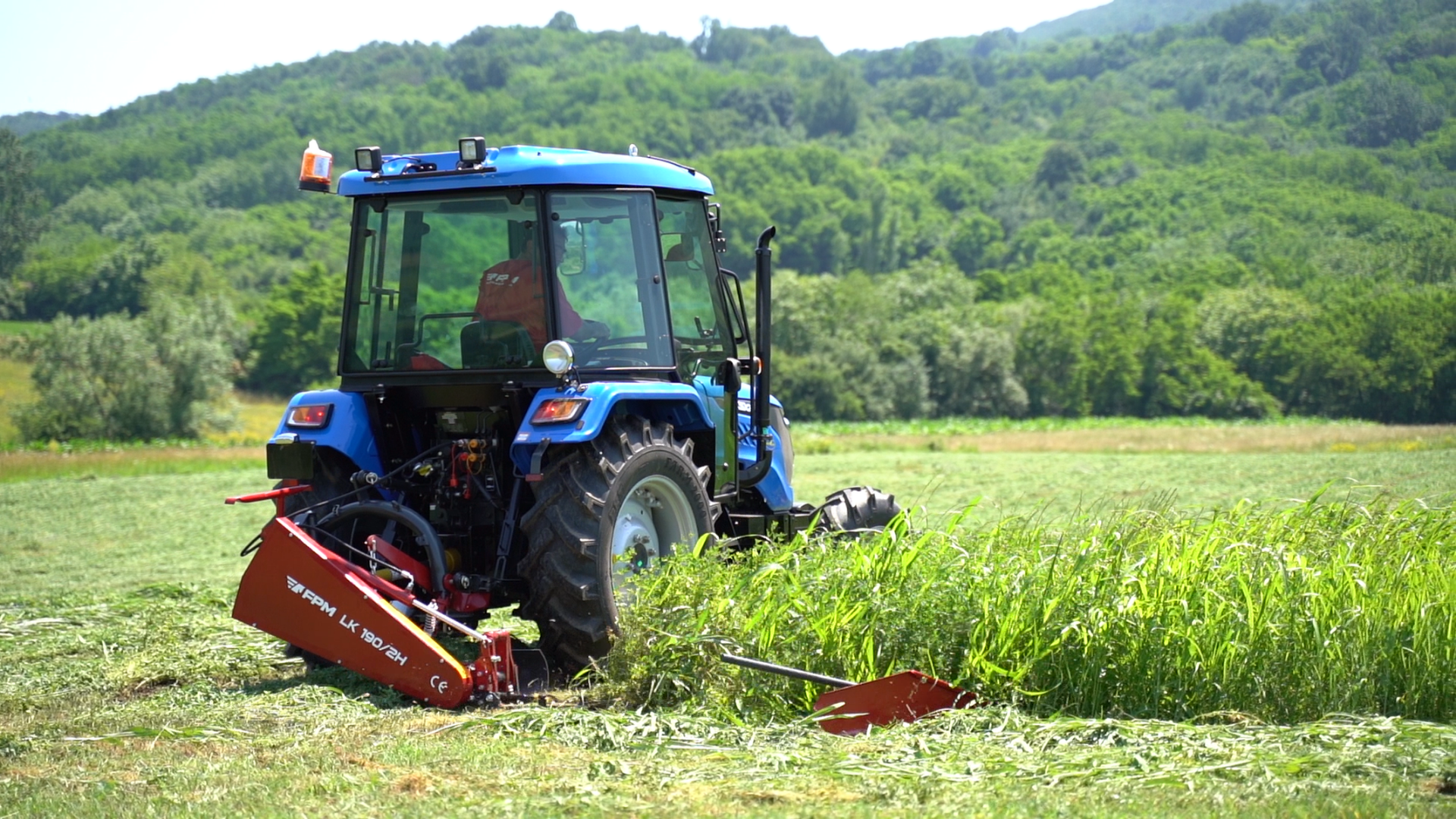

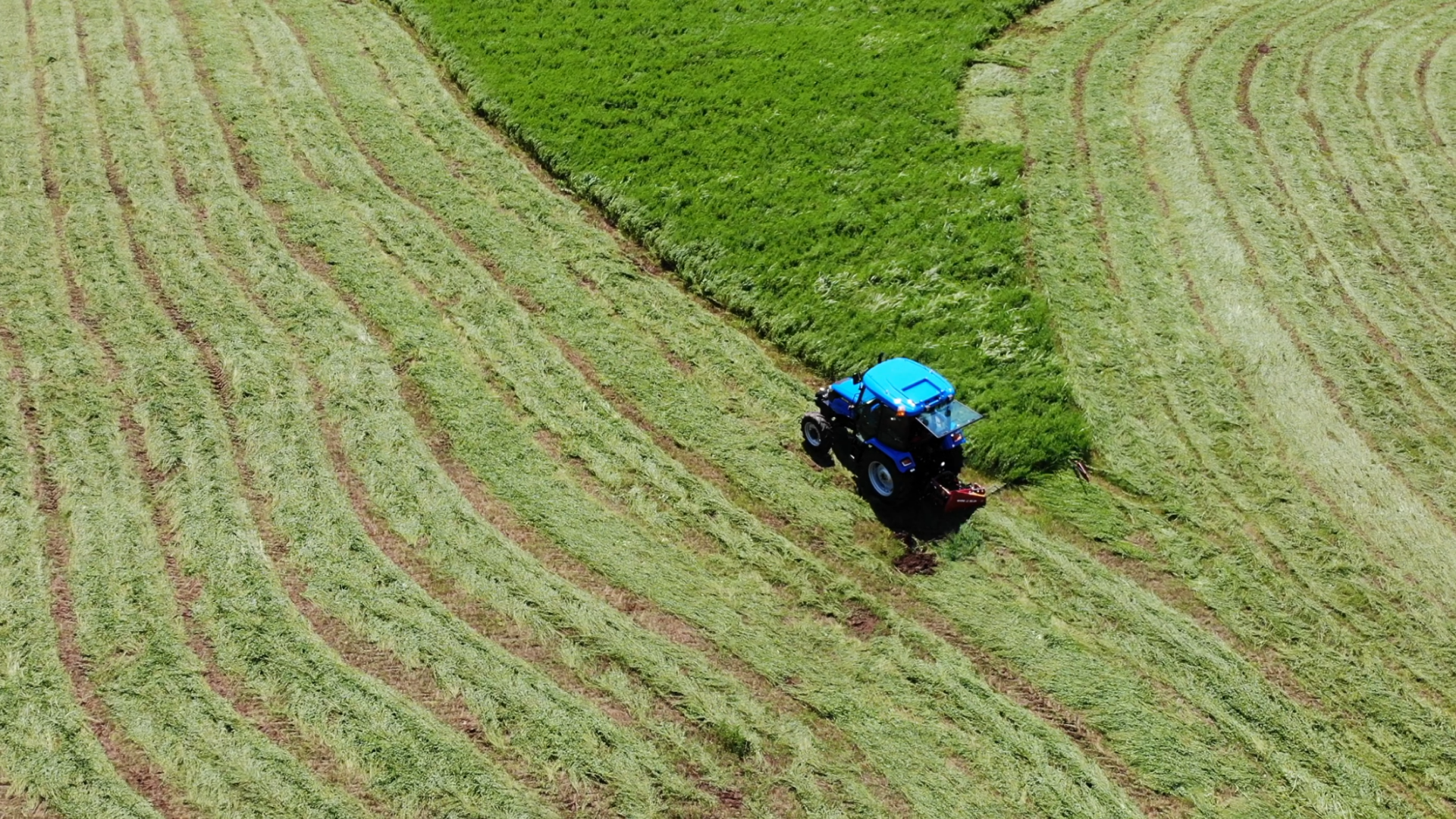

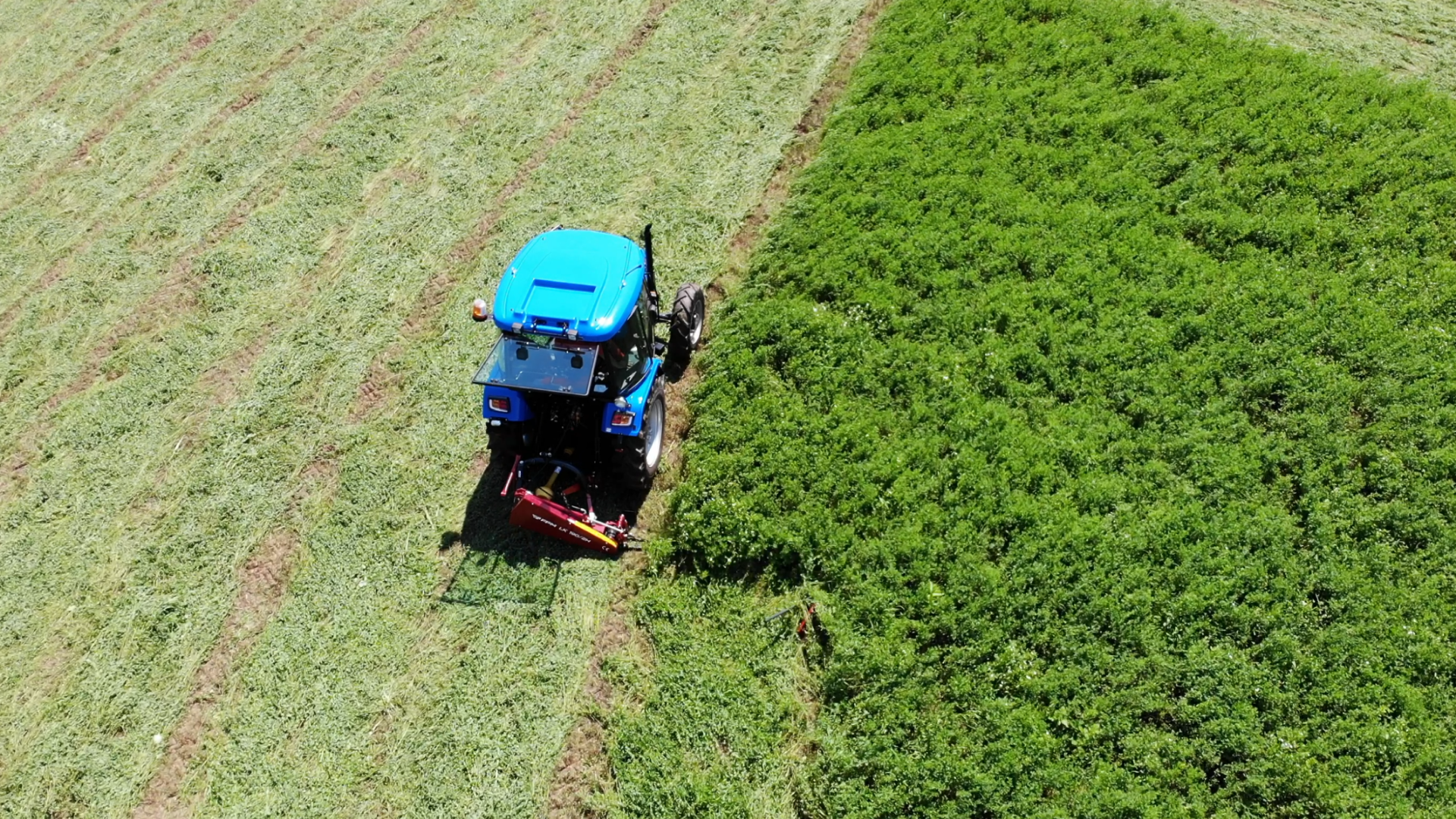

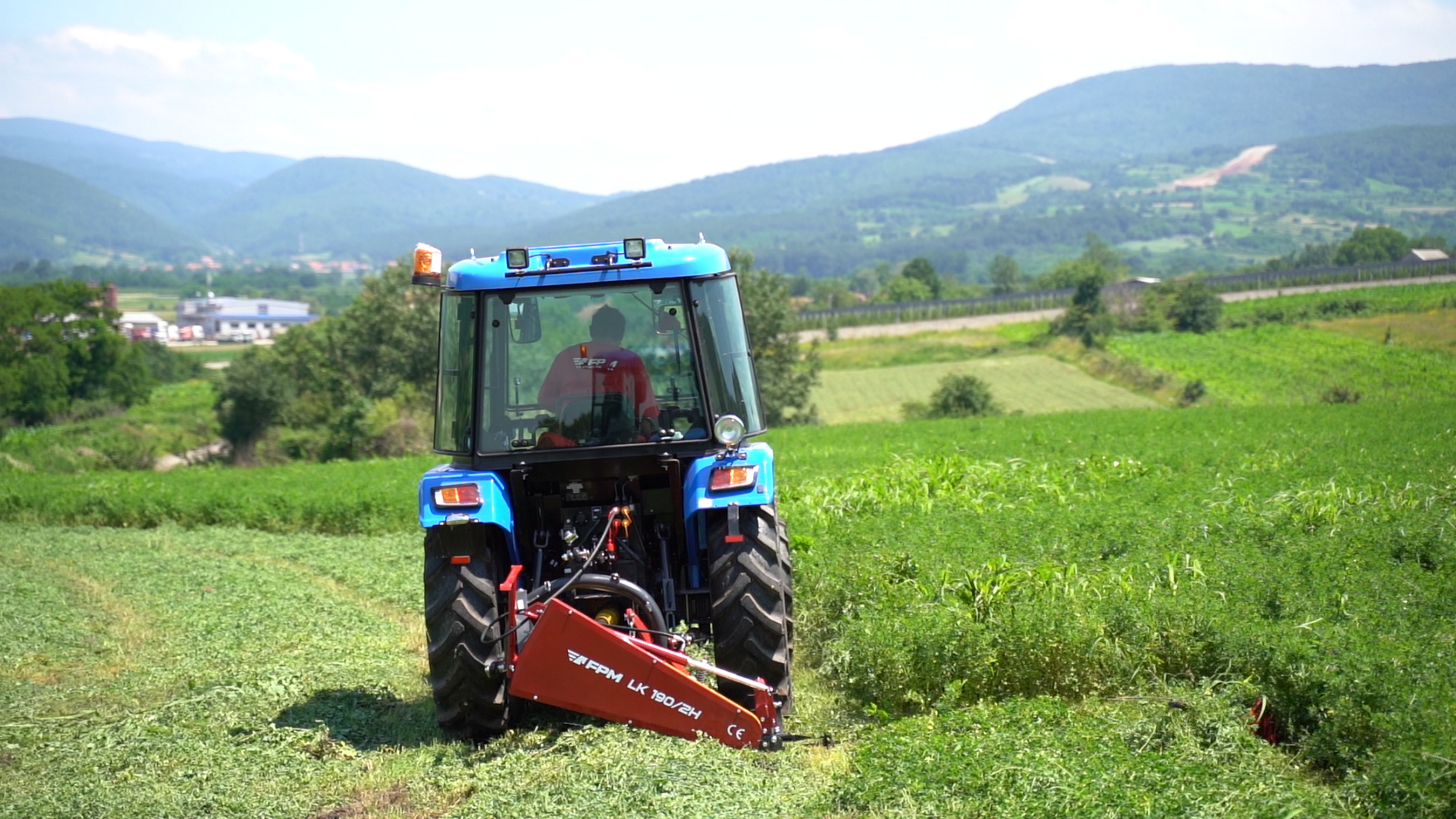

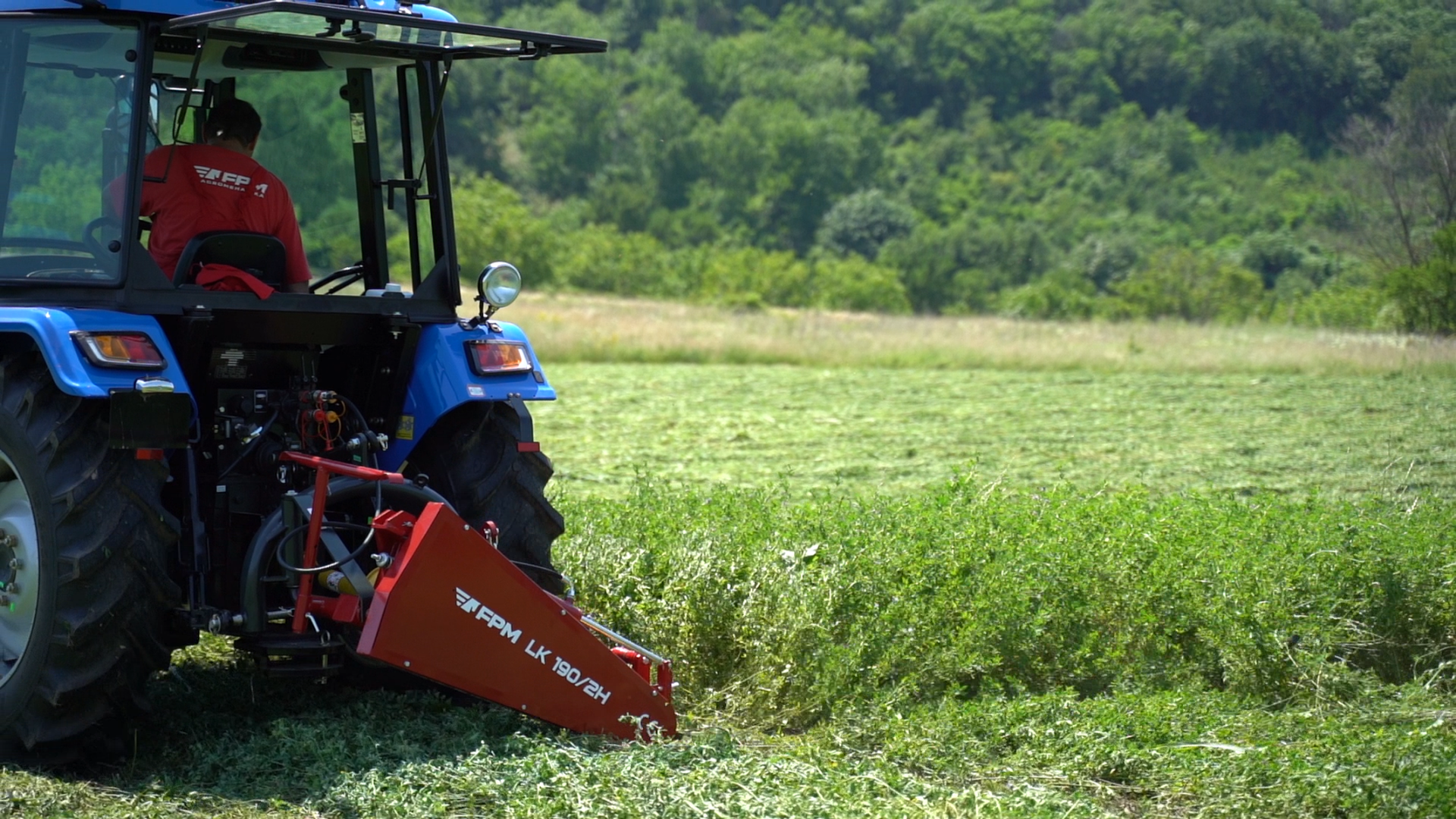

Rear-mounted tractor mowers with two moveable cutter bars designed for cutting all types of grass, forage plants and medicinal herbs, as well as for public utility works. This type of mower is equipped with high-quality cutter bar made in Germany (Busatis system) and can be used for mowing even under difficult conditions, such as: flattened and tangled grass, damp terrain, terrains with molehills, slopes, during moderate rainfall, etc.

- Faster regeneration of plants and therefore greater yield

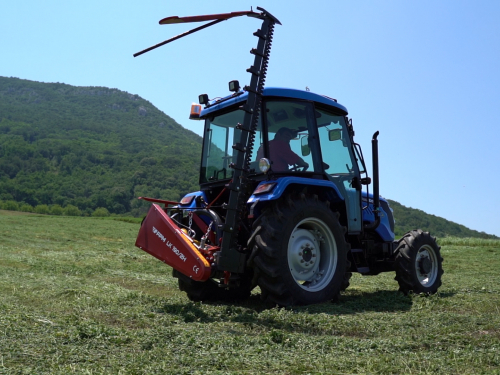

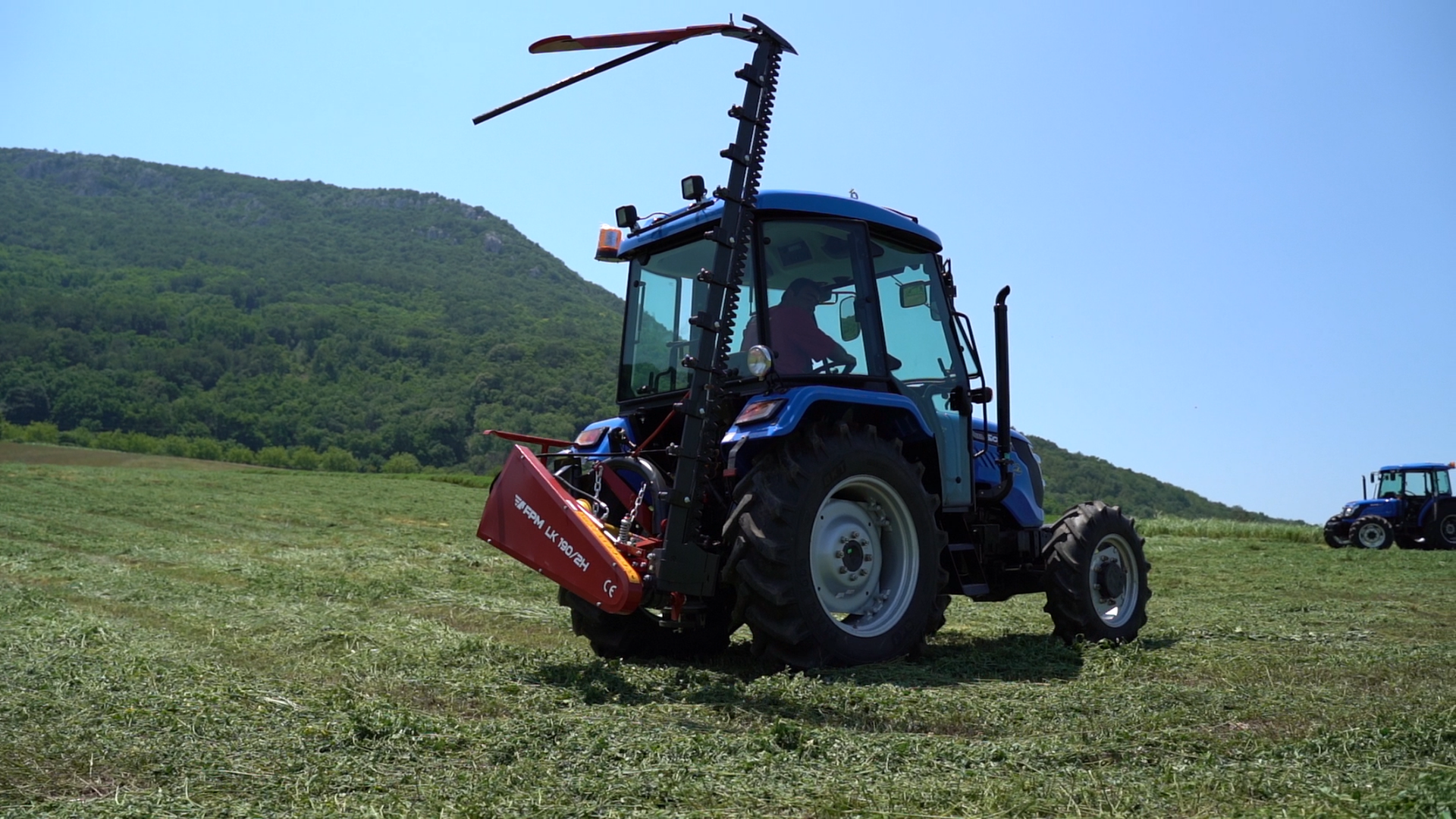

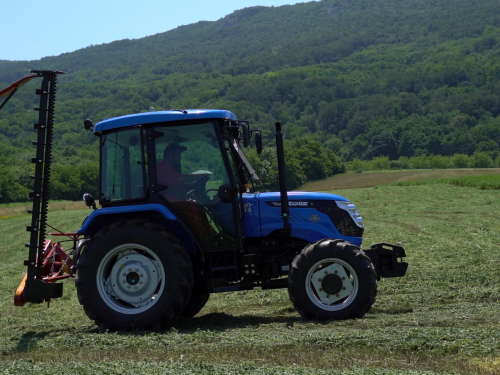

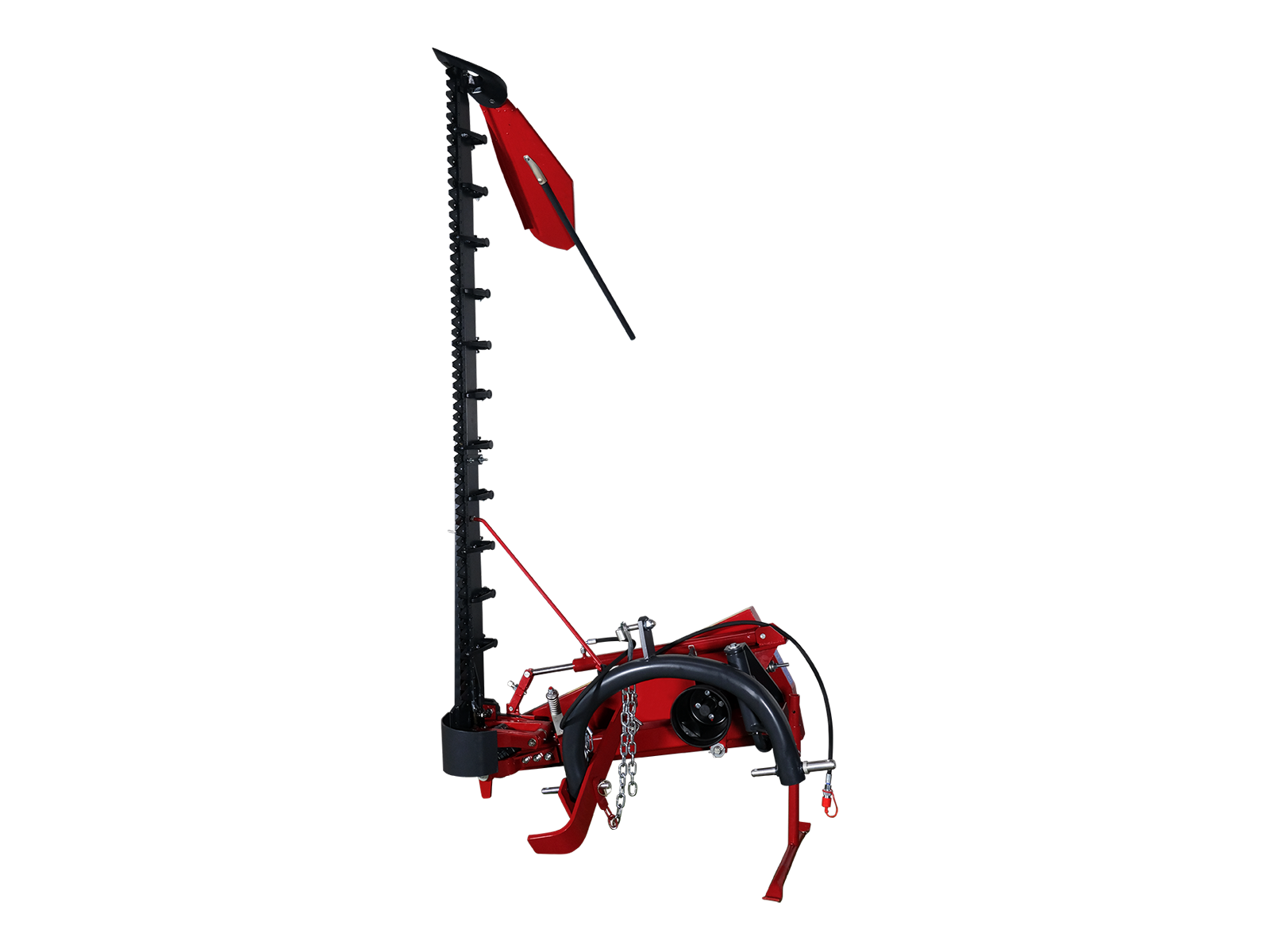

- Can be used in vertical position (+90 degrees) for trimming hedges, etc.

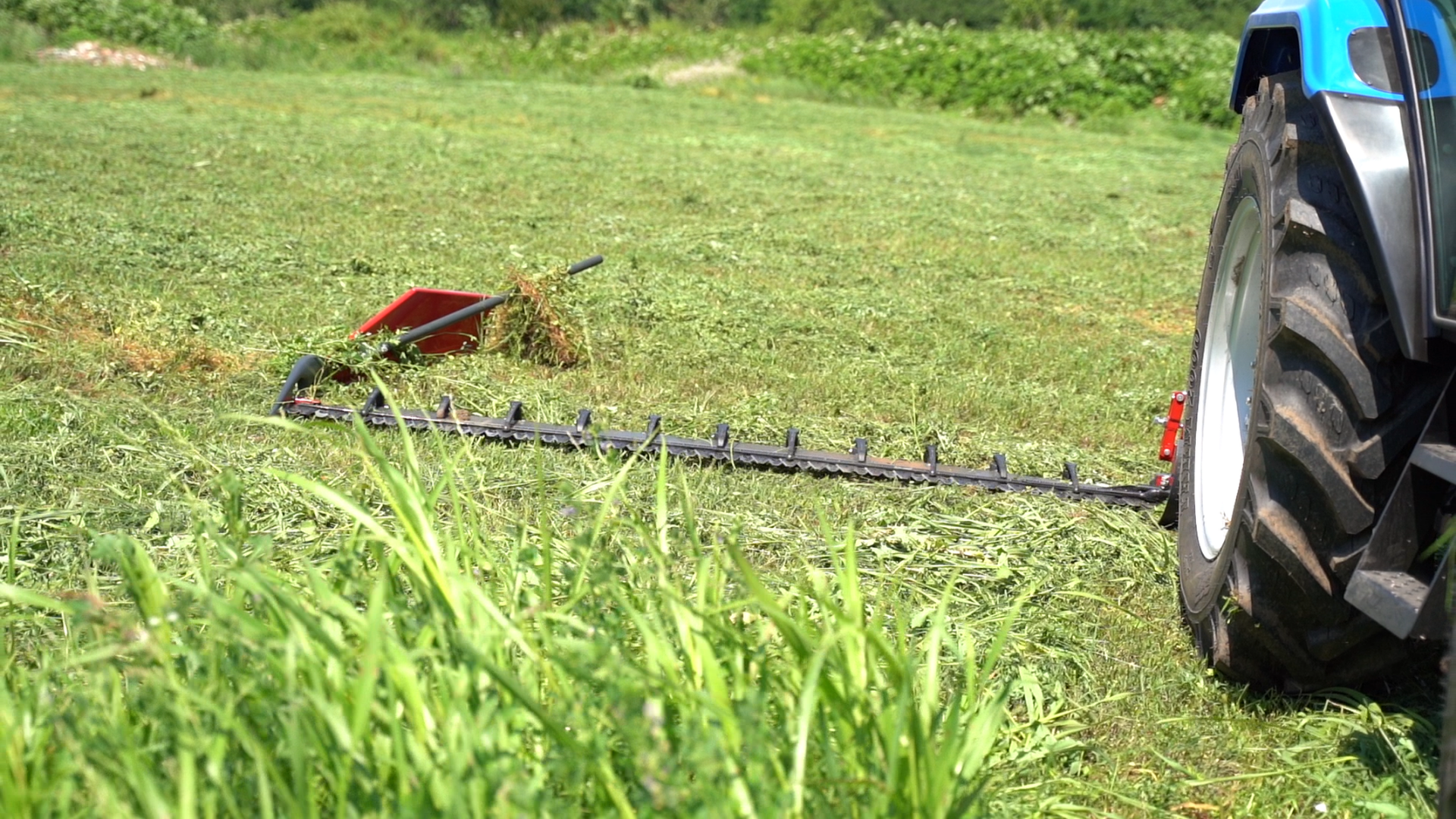

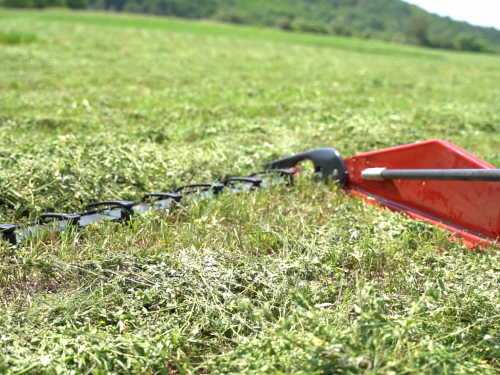

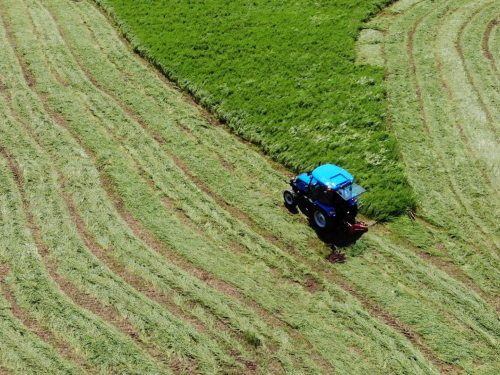

- Scatters and lays mowed mass (does not flatten swath by pressure), shortening drying time and facilitating operation of wheel rakes
- Low cost and easy maintenance

Key features:

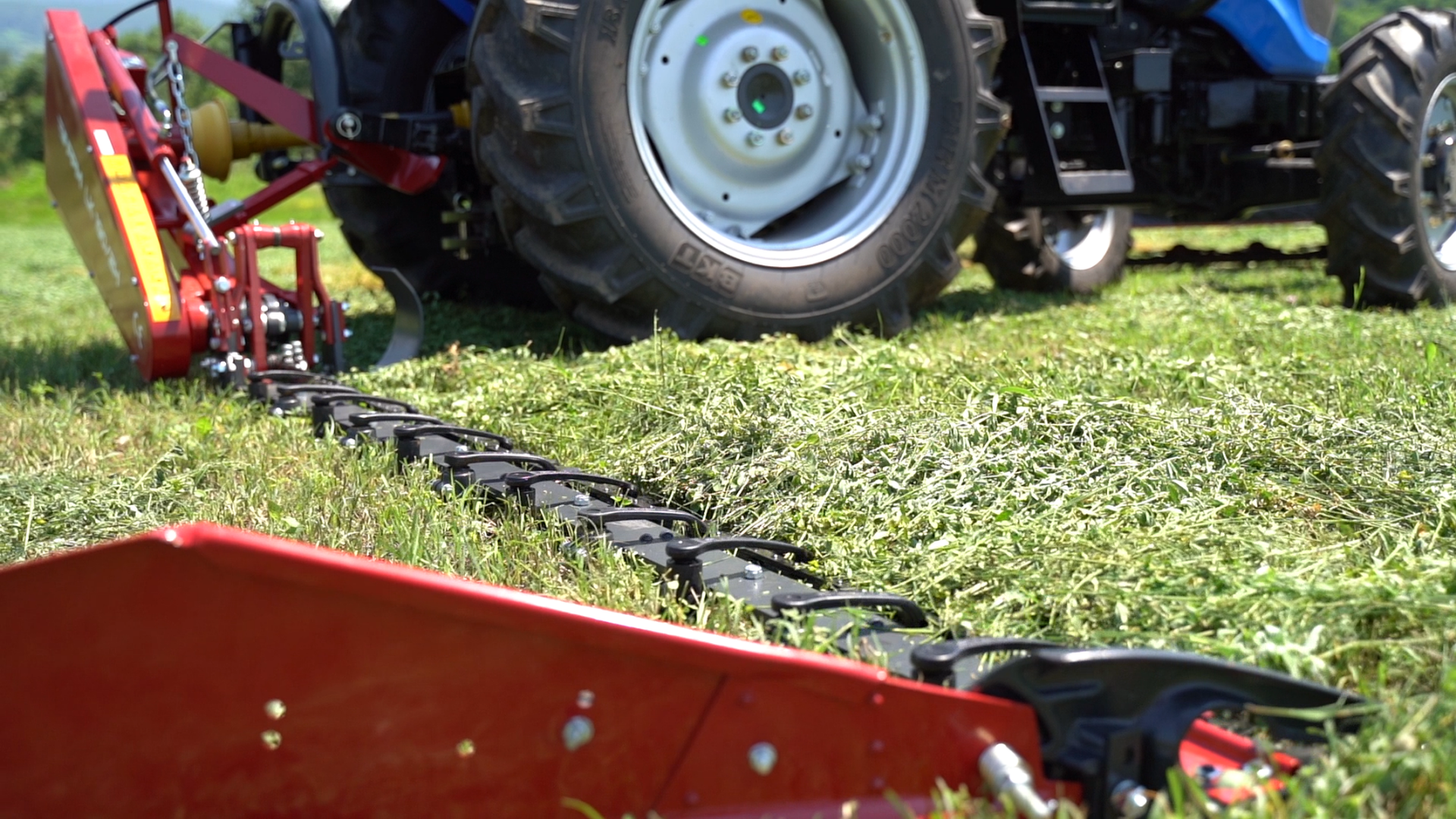

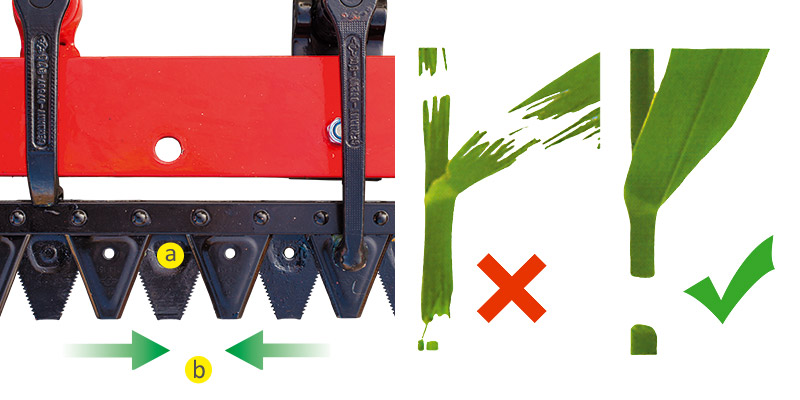

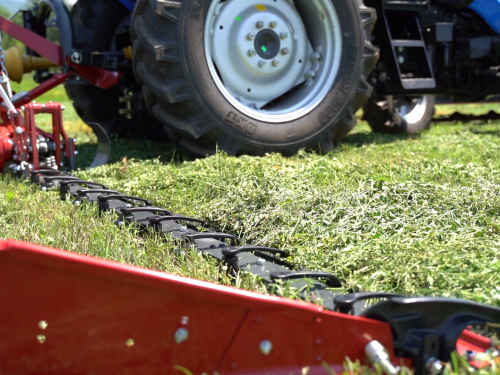

 Cutter bar:

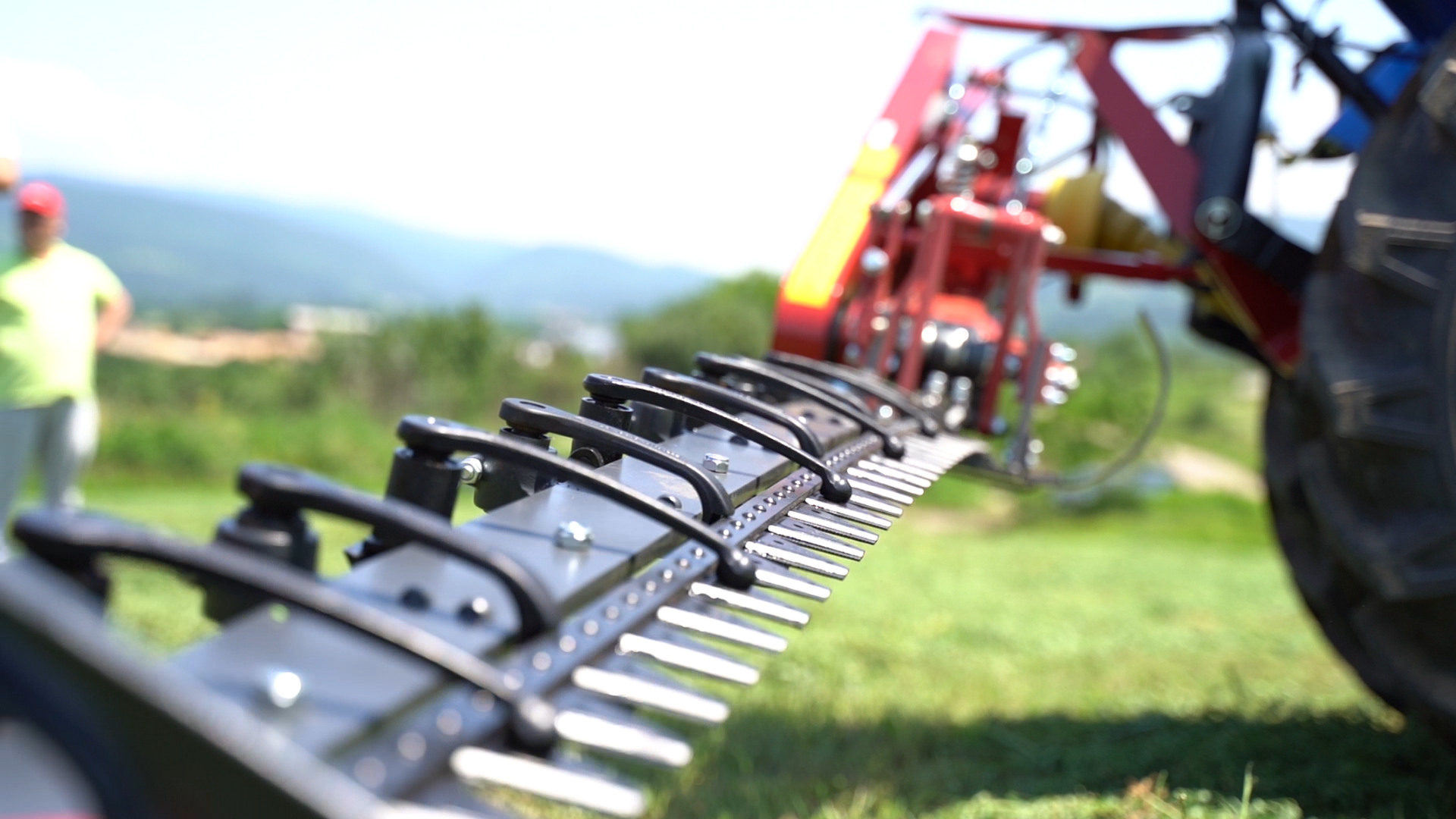

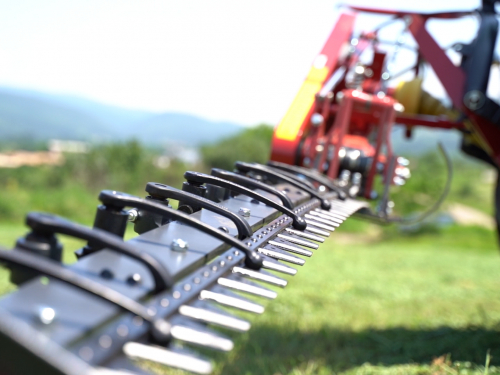

     a) Serrated knives for difficult working conditions;
   b) Reciprocating movement of cutter bars (Busatis system) provides precise, scissor-like cutting (without ripping) and contributes to faster plant regeneration and growth.
   c) Main bar is made of special type of steel (spring steel), offering high strength and appropriate flexibility.


     a) Safety system for automatic release of the cutter bar in case of obstacle impact;
   b) Hydraulic lifting system (optional);

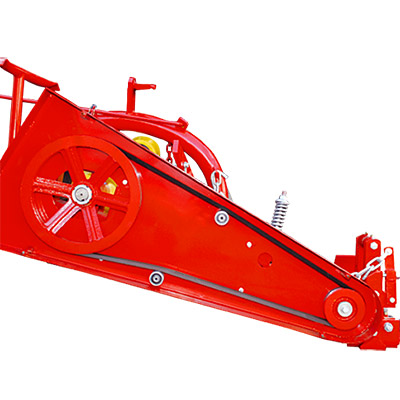

 Cutter bar drive mechanism (shafts with eccentric plates).

 A set of V-belts transmits power to cutter bar driveline.

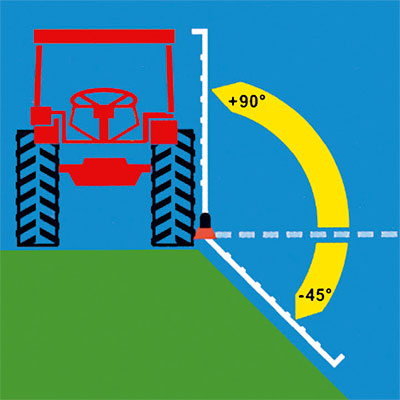

 Adaptation to slopes up to +90 to -45 degrees.
Scroll table left or right
Type LK 125/2 - 1N LK 170/2 LK 170/2H LK 190/2 LK 190/2H LK 225/2H
Working width (m) 1,25 1,7 1,7 1,9 1,9 2,25
Number of cutter bars / number of knives 32 45 45 51 51 61
Linkage 3-point
Tractor category 1N I,II
Tractor minimum power output, kW (hp) 18(24) 25(34)
Tractor output shaft RPM (r/min) 540
Maximum tractor operating speed (km/h) 12
Maximum work rate (ha/h) 1,5 2 2 2,3 2,3 3
Cutting height (cm) 3-9
Swath width (m) 1 1,35 1,35 1,45 1,55 1,75
Cutter bar lifting system manual manual (option hydraulic) manual manual (option hydraulic)
Safety mechanism yes (float spring)
Width in transport position tractor width+20cm
Weight (kg) 152 170 170 185 185 225
