Side-shift rotary tillers

Side-shift rotary tillers

Technical data

Side-shift rotary tillers fall in the category of light-weight rotary tillers and are designed for primary and secondary tillage in crop farming, truck farming, fruit growing and viticulture. Due to the capacity for right-hand side shifting, this type of rotary tiller enables working the soil in close proximity to a plant, without any danger of tractor damaging the branches, leafs or other parts of the plant. These machines are available in two classes: B35 (for easier operating conditions) and B55 (for medium-duty use).


Advantages:

- Side movement
- Low fuel consumption and suitability for low powered tractors due to the optimal design
- High quality of the blades
- High reliability


Key features:

1
  Working depth adjustment by means of side sliders.
2
  Side-shifting mechanism.
3
  Chain drive transmission in oil bath.
4
  Special shape of the rotor blades and their helical positioning ensure efficient soil pulverisation with maximum energy efficiency.
5
  Rear hood position setting adjusts the level of soil pulverisation.
Scroll table left or right

Type LF 105 LF 125 LF145 LF 165 LPF 105 LPF 125 LPF 145 LPF 165 LPF 165H SPF 145 SPF 165 SPF 168H SPF 185 SPF 185H SPF 205 SPF 205H
Working width (m) 1,05 1,25 1,45 1,65 1,05 1,25 1,45 1,65 1,65 1,45 1,65 1,65 1,85 1,85 2,05 2,05
Total width  (m) 1,2 1,4 1,6 1,8 1,2 1,4 1,6 1,8 1,8 1,6 1,85 1,85 2,05 2,05 2,25 2,25
Tractor minimum power output, kW (hp) 11(15) 15(20) 18(25) 22(20) 11(15) 15(20) 18(25) 22(30) 22(30) 18(25) 22(30) 22(30) 26(35) 26(35) 37(50) 37(50)
Linkage 3- point
Tractor category 1 N I,II 1 N I,II
Tractor output shaft RPM (r/min) 540
Rotor RPM (r/min) 231 280
Rotor diameter (mm) 42(solid material) 63,5(thick-walled tube 8mm)
Blade rotor diameter (mm) 350 350 350 350 350 350 350 350 350 350 470
Lateral transmission Lanac
Number of blades per flange / total 4 / 20 4 / 24 4 / 28 4 / 32 4 / 20 4 / 24 4 / 28 4 / 32 4 / 32 4 / 28 6 / 48 6 / 48 6 / 54 6 / 54 6 / 60 6 / 60
Maximum working depth (cm) 18 18 18 18 18 18 18 18 18 18 20 20 20 20 20 20
Depth adjustment Bočni klizači
Working width in relation to the tractor axis (cm)         L-39 / D-66 L-39 / D-86 L-39 / D-106 L-39 / D-126 L-39 / D-126 L-39 / D-106 L-40 / D-125 L-40 / D-125 L-40 / D-155 L-40 / D-155 L-45 / D-155 L-45 / D-155
        L-50 / D-55 L-60 / D-65 L-70 / D-75 L-80 / D-85 L-80 / D-85 L-70 / D-75 L-80 / D-85 L-80 / D-85 L-90 / D-95 L-90 / D-95 L-105 / D-95 L-105 / D-95
Weight (kg) 157 172 186 195 157 172 186 231 270 280 310 430 335 450 380 476
Scroll table left or right

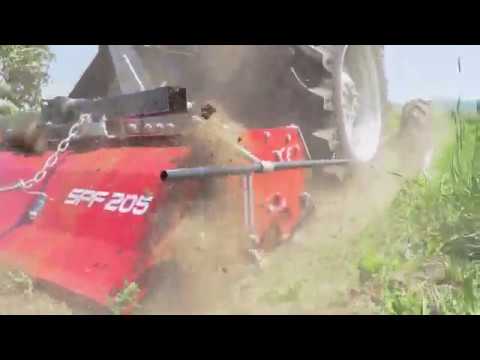

Photo & Video gallery
